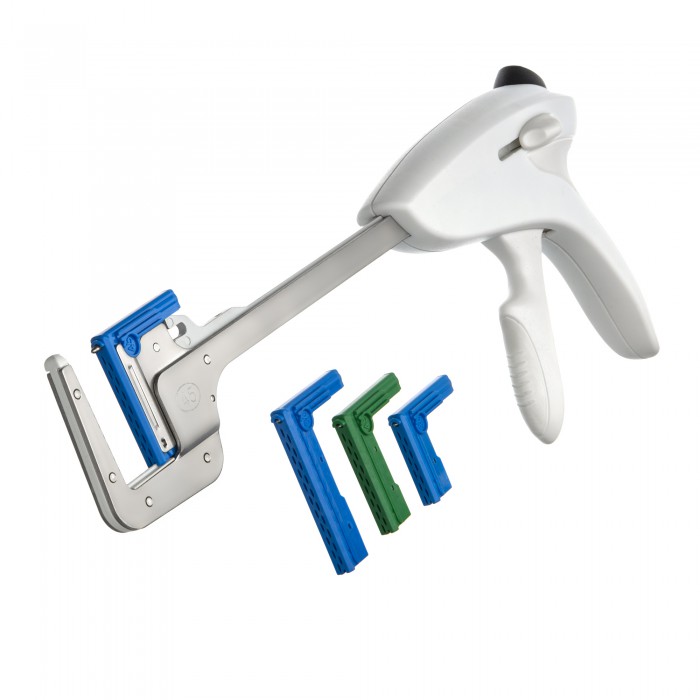

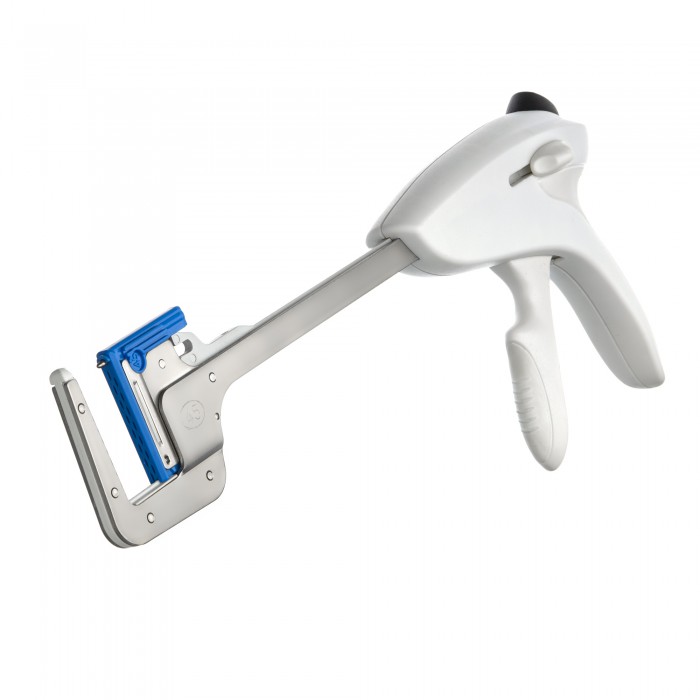

Linear Stapler and Reloads

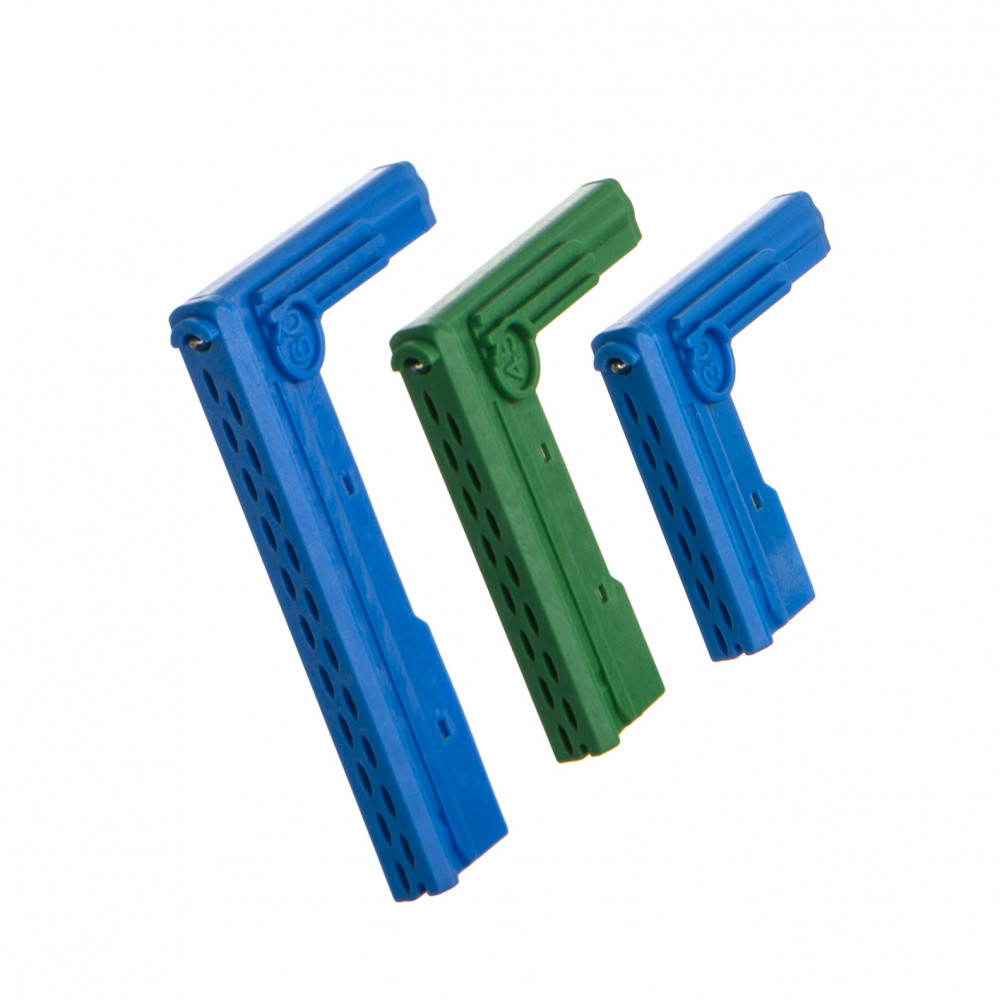

Invumeds Linear Staplers feature a generous 20mm parallel jaw opening and internal mechanisms to assure uniform compression and staple formation. Each handle accepts a selection of color coded reloads optimized for different tissue thicknesses.
Product description
- Primarily used for the creation of anastomoses and the closure of stumps or incisions during reconstruction of the digestive tract and organ removal procedures where field exposure is difficult.
- Parallel closure: uniform tissue pressure, consistent staple formation, effective suture haemostasis.
- Positioning pin: prevents spillage of clamped tissue, aids parallel closure and ensures that all tissue is sutured.
- Intermediate position: adjusts the suture site to ensure that the suture is placed where it is needed
- One-touch reset button for easy operation and safe exit.
- Stapling is made with rubberized handle. By first time pressing the handle tissue is fixed, by second time pressing stapling is made.
- Linear Staplers are supplied in 4 versions depending on the suture length: 30, 45, 60 or 90 mm.
- Staples in reload are staggered for even pressure distribution on the tissue after stitching.
- It is possible to replace the reload during one operation up to 7 times and make 8 sutures with it.
Order information
Stapler and Reload Size range
| Reload color code | Suture length, mm | Staple quantity | Staple height, mm | Closed staple height, mm |
|---|---|---|---|---|
| STANDARD | 30 | 11 | 3.5 | 1.5 |
| THICKENED | 30 | 11 | 4.8 | 2.0 |
| STANDARD | 45 | 15 | 3.5 | 1.5 |
| THICKENED | 45 | 15 | 4.8 | 2.0 |
| STANDARD | 60 | 21 | 3.5 | 1.5 |
| THICKENED | 60 | 21 | 4.8 | 2.0 |
| STANDARD | 90 | 33 | 3.5 | 1.5 |
| THICKENED | 90 | 33 | 4.8 | 2.0 |
