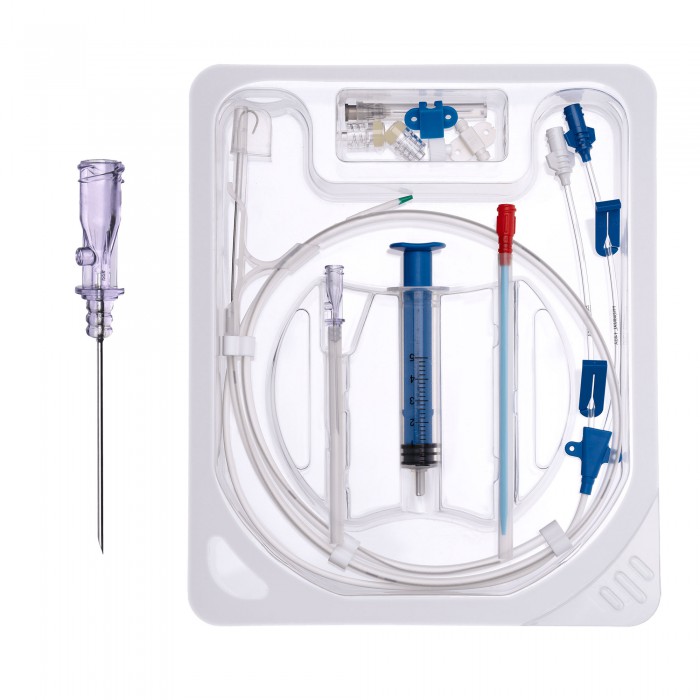

CVC kit Optimum
CVC kit Optimum is sterile, pyrogen-free and atoxic and provided with the following components:
- Single, double, triple or four lumen indwelling central venous catheter with soft tip, extension line, tube clamp and female Luer hubs.
- Introducer needle.
- J-tip guide wire with dispenser.
- 5 ml syringe with injection needle.
- 5 ml blue wire introduction syringe.
- Vessel dilator 100 mm.
- Catheter holder and catheter holder clamp.

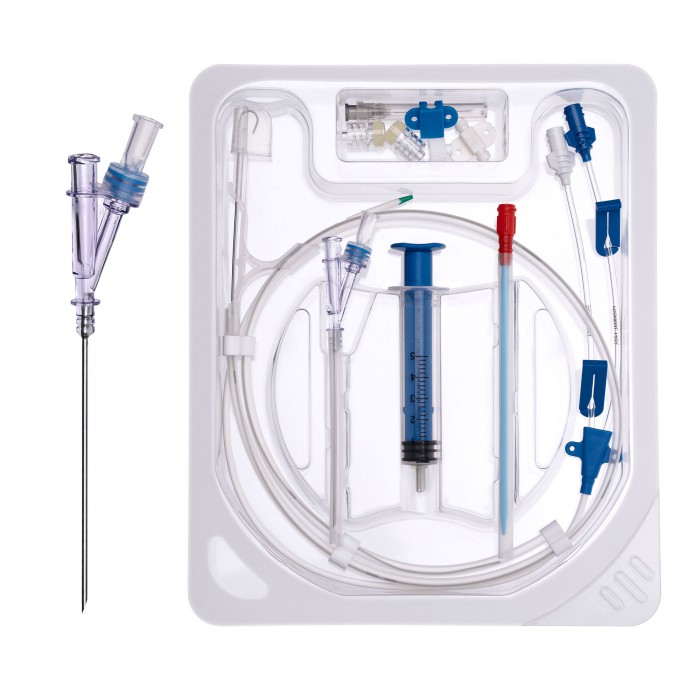

CVC kit Optimum Y
CVC kit Optimum Y is sterile, pyrogen-free and atoxic and provided with the following components:
- Single, double, triple or four lumen indwelling central venous catheter with soft tip, extension line, tube clamp and female Luer hubs
- Y-type introducer needle with check valve
- J-tip guide wire with dispenser
- 5 ml blue wire introduction syringe
- Vessel dilator 100 mm
- Catheter holder and catheter holder clamp

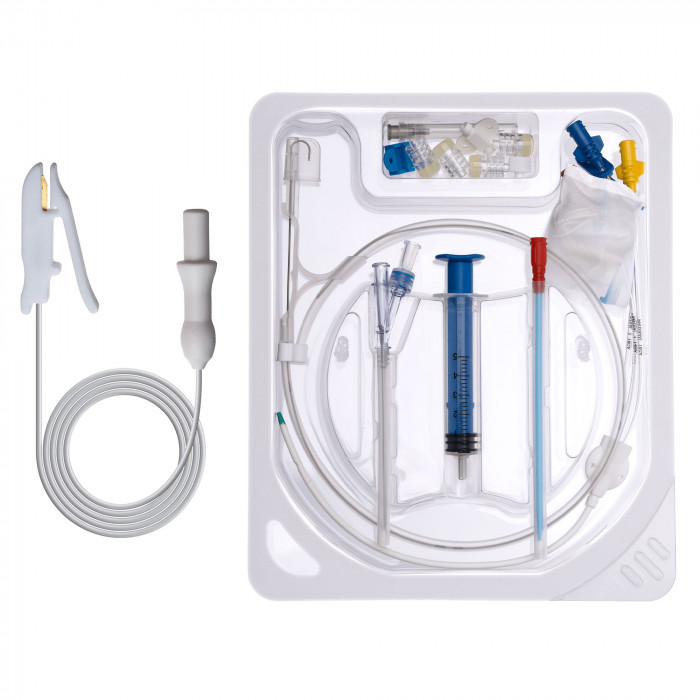

CVC kit Optimum ECG
CVC kit Optimum ECG is sterile, pyrogen-free and atoxic and provided with the following components:
- Single, double, triple or four lumen indwelling central venous catheter with soft tip, extension line, tube clamp and female Luer hubs.
- ECG cable allows for ECG monitoring of the catheter position by connecting to an adapter with subsequent signal conversion and transmission to an ECG monitor that displays the received data.
- Y-type introducer needle with check valve.
- J-tip guide wire with dispenser.
- 5 ml blue wire introduction syringe.
- Vessel dilator 100 mm.
- Catheter holder and catheter holder clamp.

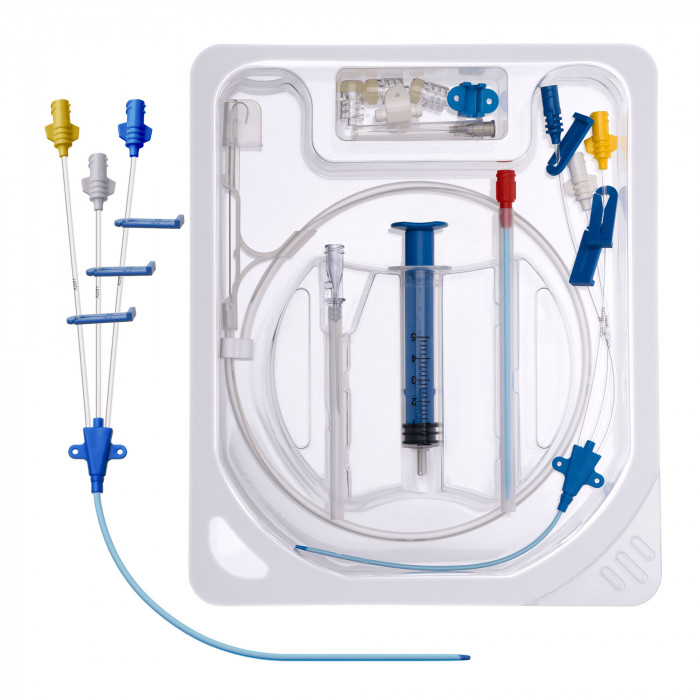

CVC kit Optimum Antimicrobial
CVC kit Optimum Antimicrobial is sterile, pyrogen-free and atoxic and provided with the following components:
- Single, double, triple or four lumen indwelling central venous catheter with soft tip, extension line, tube clamp and female Luer hubs.
- Antimicrobial coating of Minocycline and Rifampicin effectively prevents the catheter related bloodstream infection (CRBSI).
- Introducer needle.
- J-tip guide wire with dispenser.
- 5 ml blue wire introduction syringe.
- Vessel dilator 100 mm.
- Catheter holder and catheter holder clamp.

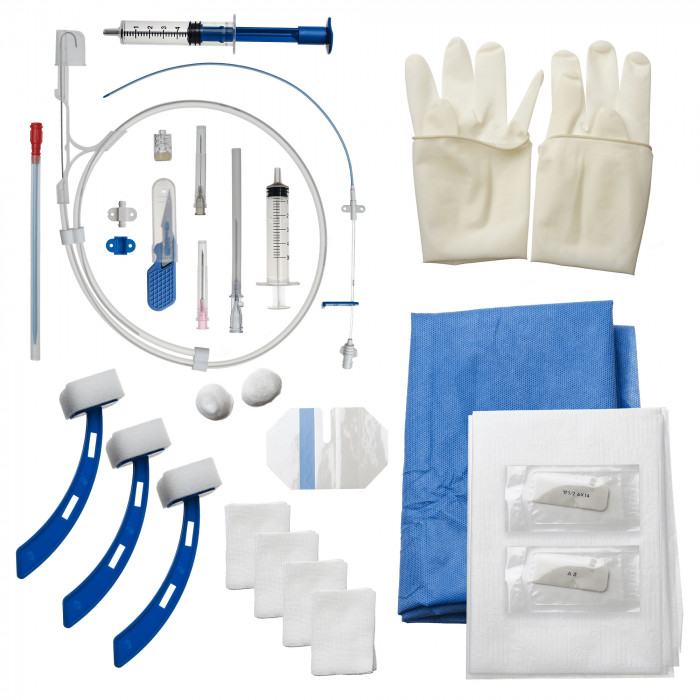

CVC kit Premium
CVC kit Premium has all the necessary sterile consumables for the CVC catheterisation in one ready-made kit provided with the following components:
- Single, double, triple or four lumen indwelling central venous catheter with soft tip, extension line, tube clamp and female Luer hubs.
- Introducer needle.
- J-tip guide wire with dispenser.
- 5 ml blue wire introduction syringe.
- Vessel dilator 100 mm.
- Catheter holder and catheter holder clamp.
- Injection needle 22G.
- Injection needle 18G.
- Surgical Gloves.
- Surgical Pledgets.
- Surgery Sheet.
- Surgery Towel.
- Sterile Brushes.
- Gauze Pads.
- Suture with Needle.
- Wound Dressing.
- Scalpel.
Central Venous Catheter Kits. Product description
- Central venous catheter kits are designed for use in Intensive Care Medicine and in anesthesia. The catheter in the СVС kits is 1-way, 2-way or 3-way, depending on the indication.
- The catheter itself is made of polyurethane. At room temperature the СVС-catheters are stiff, difficult to kink, and easy to introduce. Once in the body they are designed to soften and reduce the potential for vessel trauma.
- The soft radiopaque conical catheter tip, helps to reduce vessel irritation, forms a seamless junction with the catheter body. All Invumed CVCs are provided with a soft tip.
- All kits includes a guide wire with a nitinol core, which is designed to improve the shape memory of the guide wire thus enhancing maneuverability and resistance to kinking. The guide wire is flexible on both sides and J-curved on one side, depending on the user’s needs.
- The clearly marked extensions allow catheter manipulation to be performed well away from the insertion site, helping reducing the risk of infection. Different lengths of extensions and colour-coded hubs allow easy and reliable lumen identification.
- The specially formed dilator tip provides a smooth transition with the guidewire to help reduce the risk of skin irritation and dilator tip breakage. The sharp dilator tip reduces the need for a scalpel to enlarge the access site. Dilators are tailored to each catheter size.
- The special Y-site adaptor fits between the syringe and introducer needle during catheter introduction. The guidewire is introduced through the side arm of the Y and is designed to eliminate the need to remove the syringe. This prevents blood loss and exposure to bloodborne pathogens.
- Invumed CVCs are available in different set and kit configurations. The standard set provides all components necessary for the placement of a central venous catheter. Extended kit versions features additional components for the insertion of a central venous catheter to maximise infection prevention by a more procedural approach.
Technical cpesifications
- Central venous catheters are inserted using the Seldiger technique
- J-wire design enables single-handed use
- Guide wire is inserted through a Y-connector or a special introducer syringe (insertion through syringe plunger)
- Single, double or triple lumen catheters
- Markings on the catheter surface facilitate catheter depth adjustment
- Radiopaque catheter material enables monitoring of the catheter position
- The tip is manufactured from particularly supple medical grade polyurethane
- Atraumatic catheter tip design enables the catheter to be attached safely, comfortably and gently on the skin
- The sterile tray for the complete set can be passed to the attending physician in the sterile area
- Range of introducer needles diameters and lengths allow selection according to application
- Attachment clips for catheters
