CVC kit Optimum Y

Product description

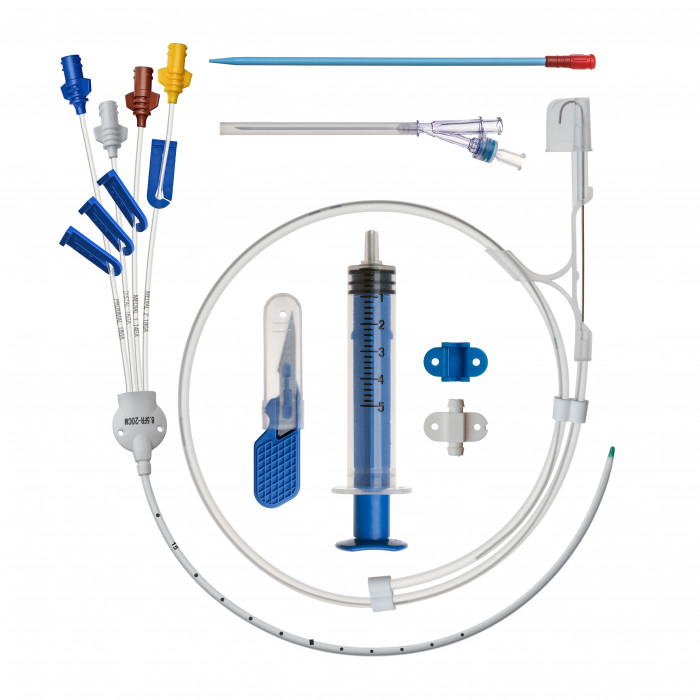

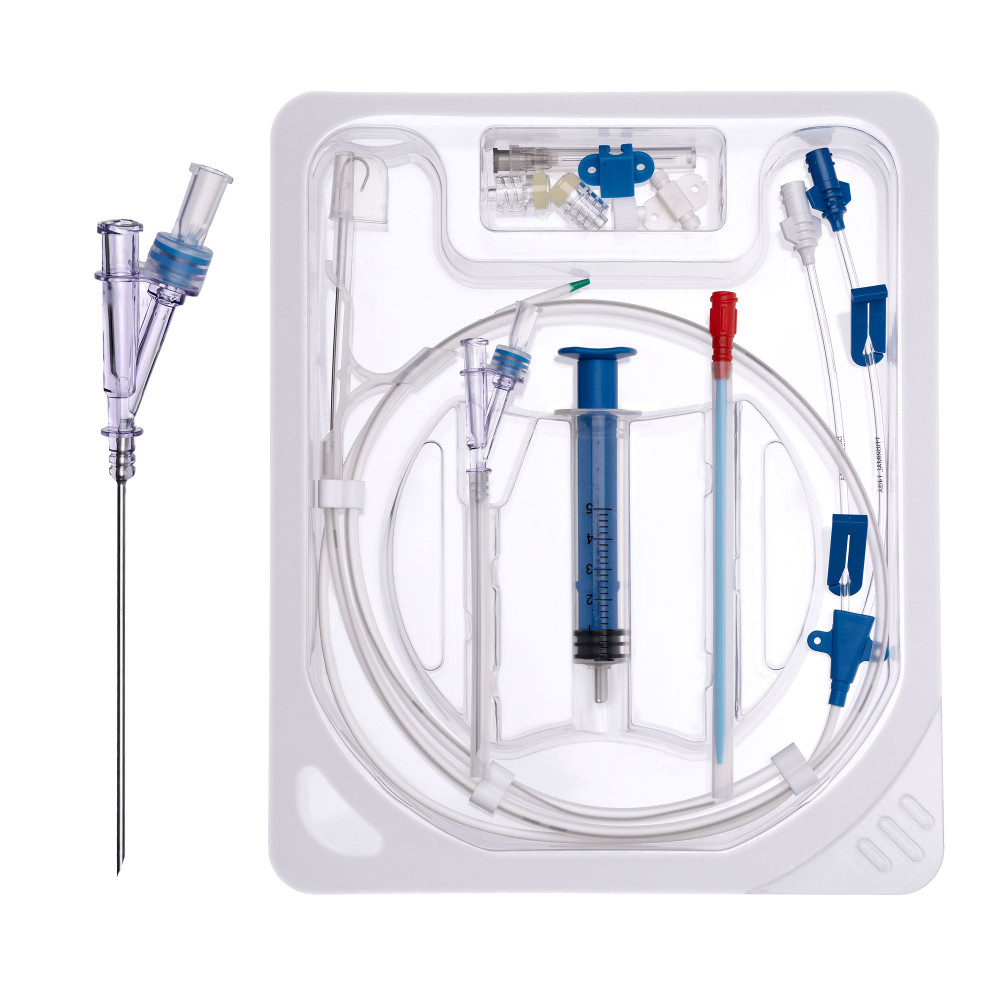

CVC kit Optimum Y is sterile, pyrogen-free and atoxic and provided with the following components:

Single, double, triple or four lumen indwelling central venous catheter with soft tip, extension line, tube clamp and female Luer hubs

Y-type introducer needle with check valve

J-tip guide wire with dispenser

5 ml blue wire introduction syringe

Vessel dilator 100 mm

Catheter holder and catheter holder clamp

Order information

REF	CVC catheter size	CVC catheter length	Guide wire	Introducer Needle	Dilator size
MB1OY-14G15	14G	15 cm	0,81 mm × 50 cm	18G	8F
MB1OY-14G20	14G	20 cm	0,81 mm × 50 cm	18G	8F
MB1OY-14G30	14G	30 cm	0,81 mm × 70 cm	18G	8F
MB1OY-16G15	16G	15 cm	0,81 mm × 50 cm	18G	6F
MB1OY-16G20	16G	20 cm	0,81 mm × 50 cm	18G	6F
MB1OY-16G30	16G	30 cm	0,81 mm × 70 cm	18G	6F
MB1OY-18G15	18G	15 cm	0,50 mm × 50 cm	19G	5.5F
MB1OY-18G20	18G	20 cm	0,50 mm × 60 cm	19G	5.5F
MB1OY-18G30	18G	30 cm	0,50 mm × 70 cm	19G	5.5F

REF	CVC catheter size	CVC catheter length	Guide wire	Introducer Needle	Dilator size
MB2OY-7F15	7F	15 cm	0,89 mm × 50 cm	18G	8F
MB2OY-7F20	7F	20 cm	0,89 mm × 50 cm	18G	8F
MB2OY-8F15	8F	15 cm	0,89 mm × 50 cm	18G	9F
MB2OY-8F20	8F	20 cm	0,89 mm × 60 cm	18G	9F
MB2OY-8F30	8F	30 cm	0,89 mm × 70 cm	18G	9F

REF	CVC catheter size	CVC catheter length	Guide wire	Introducer Needle	Dilator size
MB3OY-7F15	7F	15 cm	0,89 mm × 50 cm	18G	8F
MB3OY-7F20	7F	20 cm	0,89 mm × 50 cm	18G	8F
MB3OY-8.5F15	8.5F	15 cm	0,89 mm × 50 cm	18G	9F
MB3OY-8.5F20	8.5F	20 cm	0,89 mm × 60 cm	18G	9F
MB3OY-8.5F30	8.5F	30 cm	0,89 mm × 70 cm	18G	9F
