CVC kit Optimum

CVC kit Optimum is sterile, pyrogen-free and atoxic central catheter kit with single, double, triple or four lumen indwelling central venous catheter with soft tip, extension line, tube clamp and female Luer hubs.

CVC kit Optimum

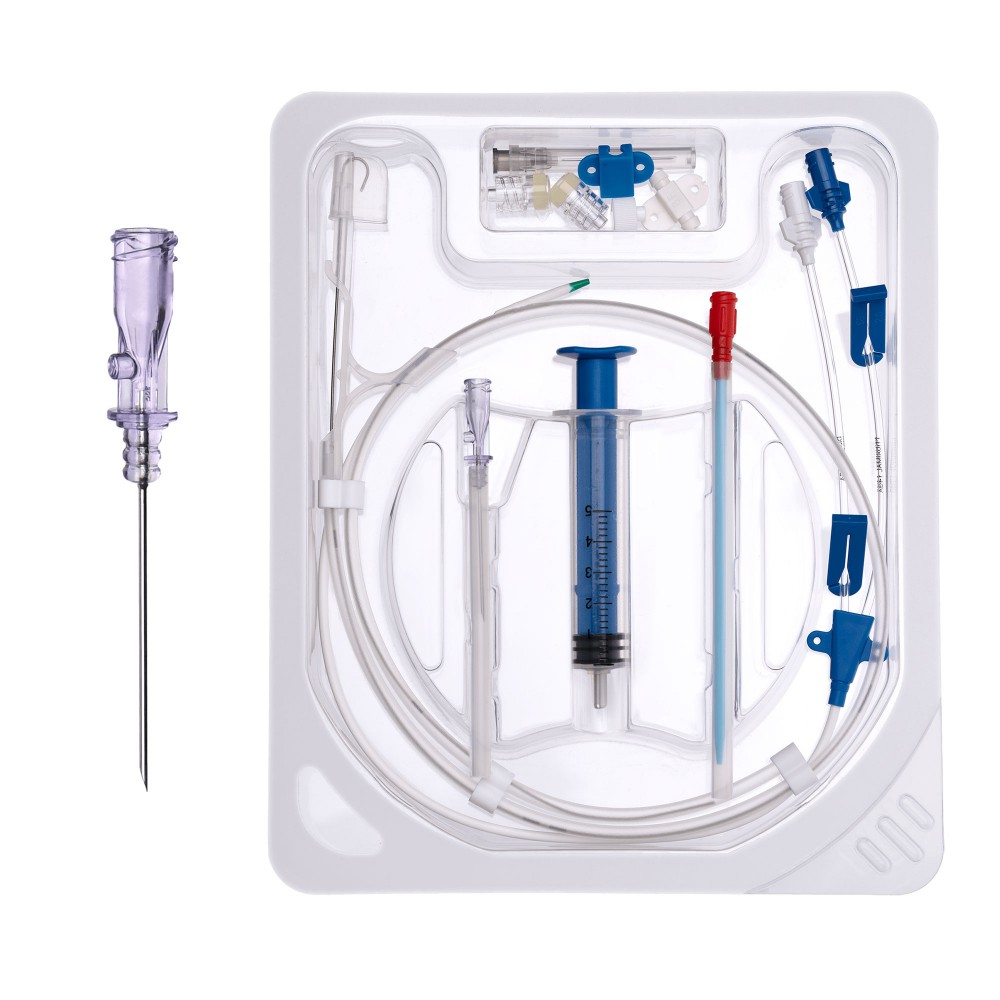

CVC kit Optimum common view
CVC kit Optimum

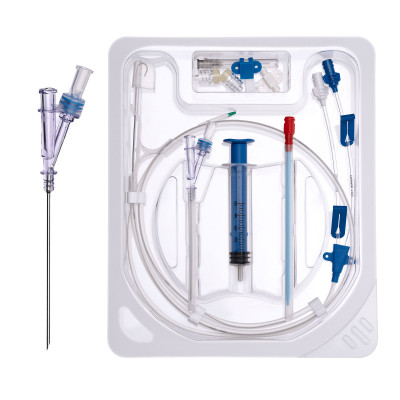

CVC kit Optimum common view

Product description

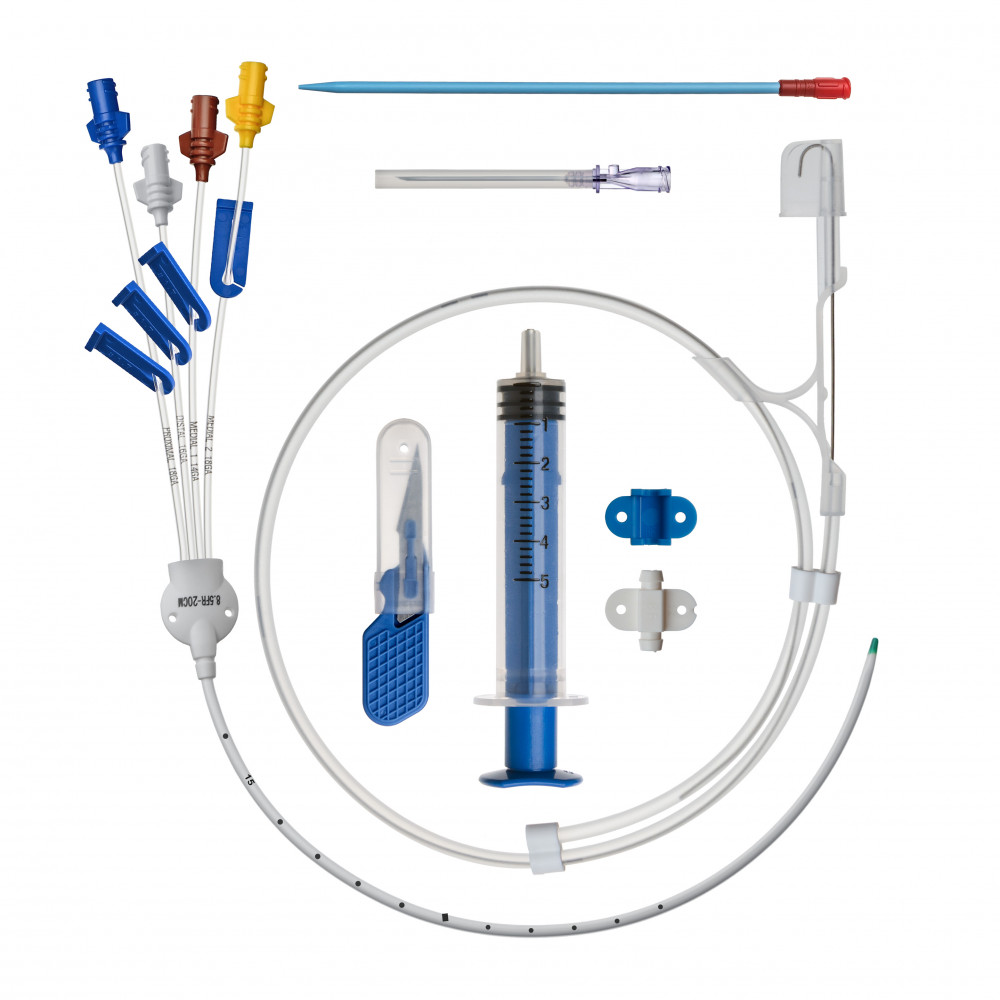

CVC kit Optimum is sterile, pyrogen-free and atoxic and provided with the following components:

  • Single, double, triple or four lumen indwelling central venous catheter with soft tip, extension line, tube clamp and female Luer hubs.
  • Introducer needle.
  • J-tip guide wire with dispenser.
  • 5 ml syringe with injection needle.
  • 5 ml blue wire introduction syringe.
  • Vessel dilator 100 mm.
  • Catheter holder and catheter holder clamp.
Download brochure

Order information

Single lumen

REFCVC catheter sizeCVC catheter lengthGuide wireIntroducer NeedleDilator size
MB1O-14G3014G30 cm0,81 mm × 70 cm18G8F
MB1O-16G3016G30 cm0,81 mm × 70 cm18G6F
MB1O-18G3018G30 cm0,50 mm × 70 cm19G5.5F
MB1O-20G3020G30 cm0,40 mm × 70 cm20G4F
MB1O-22G522G5 cm0,20 mm × 50 cm20G4F
MB1O-22G822G8 cm0,20 mm × 50 cm20G4F
MB1O-22G1022G10 cm0,20 mm × 50 cm20G4F
MB1O-22G1322G13 cm0,20 mm × 50 cm20G4F
MB1O-22G1522G15 cm0,20 mm × 50 cm20G4F
MB1O-22G1622G16 cm0,20 mm × 50 cm20G4F
MB1O-22G2022G20 cm0,20 mm × 60 cm20G4F
MB1O-22G3022G30 cm0,20 mm × 70 cm20G4F

Double lumen

REFCVC catheter sizeCVC catheter lengthGuide wireIntroducer NeedleDilator size
MB2O-4F54F5 cm0,46 mm × 50 cm20G5.5F
MB2O-4F84F8 cm0,46 mm × 50 cm20G5.5F
MB2O-4F104F10 cm0,46 mm × 50 cm20G5.5F
MB2O-4F134F13 cm0,46 mm × 50 cm20G5.5F
MB2O-4F154F15 cm0,46 mm × 50 cm20G5.5F
MB2O-4F164F16 cm0,46 mm × 50 cm20G5.5F
MB2O-4F204F20 cm0,46 mm × 60 cm20G5.5F
MB2O-4F304F30 cm0,46 mm × 70 cm20G5.5F
MB2O-5F305F30 cm0,53 mm × 70 cm20G6F
MB2O-7F307F30 cm0,89 mm × 70 cm18G8F
MB2O-8F308F30 cm0,89 mm × 70 cm18G9F
MB2O-8.5F138.5F13 cm0,89 mm × 50 cm18G9F
MB2O-8.5F168.5F16 cm0,89 mm × 50 cm18G9F
MB2O-8.5F208.5F20 cm0,89 mm × 60 cm18G9F
MB2O-8.5F258.5F25 cm0,89 mm × 60 cm18G9F
MB2O-8.5F308.5F30 cm0,89 mm × 70 cm18G9F

Triple lumen

REFCVC catheter sizeCVC catheter lengthGuide wireIntroducer NeedleDilator size
MB3O-4.5F54.5F5 cm0,53 mm × 50 cm20G6F
MB3O-4.5F84.5F8 cm0,53 mm × 50 cm20G6F
MB3O-4.5F104.5F10 cm0,53 mm × 50 cm20G6F
MB3O-4.5F134.5F13 cm0,53 mm × 50 cm20G6F
MB3O-4.5F154.5F15 cm0,53 mm × 50 cm20G6F
MB3O-4.5F164.5F16 cm0,53 mm × 50 cm20G6F
MB3O-4.5F204.5F20 cm0,53 mm × 60 cm20G6F
MB3O-4.5F304.5F30 cm0,53 mm × 70 cm20G6F
MB3O-5.5F305.5F30 cm0,53 mm × 70 cm20G6.5F
MB3O-7F307F30 cm0,89 mm × 70 cm18G8F
MB3O-8.5F308.5F30 cm0,89 mm × 70 cm18G9F

Quadruple lumen

REFCVC catheter sizeCVC catheter lengthGuide wireIntroducer NeedleDilator size
MB4O-8.5F58.5F5 cm0,89 mm × 50 cm18G9F
MB4O-8.5F88.5F8 cm0,89 mm × 50 cm18G9F
MB4O-8.5F108.5F10 cm0,89 mm × 50 cm18G9F
MB4O-8.5F138.5F13 cm0,89 mm × 50 cm18G9F
MB4O-8.5F158.5F15 cm0,89 mm × 50 cm18G9F
MB4O-8.5F168.5F16 cm0,89 mm × 50 cm18G9F
MB4O-8.5F208.5F20 cm0,89 mm × 60 cm18G9F
MB4O-8.5F308.5F30 cm0,89 mm × 70 cm18G9F
Download brochure
