Smoke filter

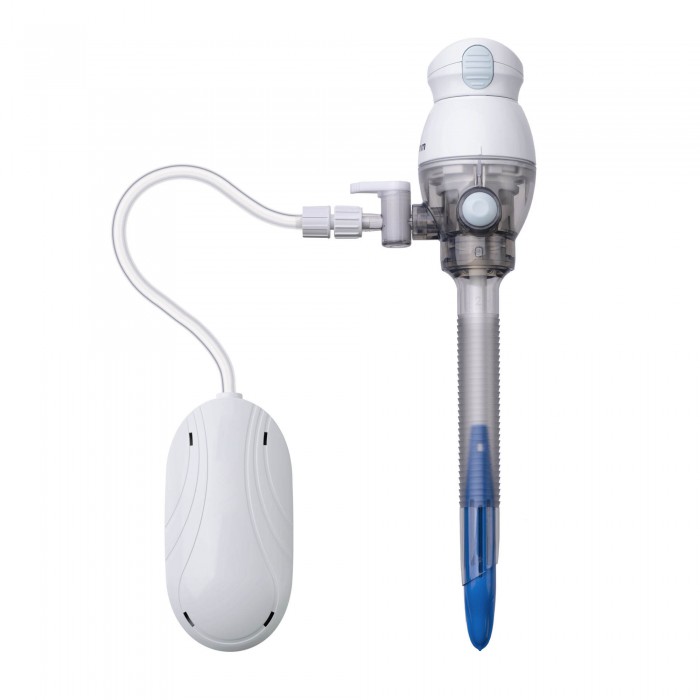

A passive smoke evacuation system removes particles, cells, virus and odor causing noxious chemicals from surgical smoke generated in laparoscopic procedures while maintaining a clear field of vision.
Product description
A passive smoke evacuation system removes particles, cells, virus and odor causing noxious chemicals from surgical smoke generated in laparoscopic procedures while maintaining a clear field of vision.
passive laparoscopic smoke filtration device with integrated ULPA filtration coupled with activated carbon to safely filter the aerosolized contents of peritoneal smoke during laparoscopy. Containing more than twice the ULPA media compared to competing passive devices and a dual management moisture control process of a wicking agent and fluid trap, PlumePort offers essential media integrity for greater protection during longer cases.
- Filter helps during any minimally invasive surgery involving insufflation, electrocautery, laser, or ultrasonic scalpel use.
- Three-layer non-woven membrane absorbs the smoke generated from coagulation without distorting visibility during the operation.
- The universal Luer connector meets ISO standards for leak free connection to the trocar.
- Adjustable Flow Control - Lightweight design and integral control maintains peritoneal distention
- Moisture Management - With an integrated fluid trap and wicking material, moisture is effectively managed to ensure the integrity of the filtration media
- ULPA Filtration - Contains more than two times ULPA filtration media than competitive devices providing enhanced protection and extending filter life
- Activated Carbon - Incorporates activated carbon to absorb gases
- Universal Connectivity - Easily connects to all standard luer lock fittings
Order information
Ref | Length mm | O.D. mm | Type of fixation | Package |
---|---|---|---|---|
Volkmann Classic line | ||||
1850-V5SBOR | 75 | 5 | Ring and baloon fixation | 5 |
1850-V5MBOR | 100 | 5 | Ring and baloon fixation | 5 |
1850-V10MBOR | 100 | 10 | Ring and baloon fixation | 5 |
1850-V12MBOA | 100 | 12 | Threaded Anchor and baloon fixation | 5 |
1850-V12MBOR | 100 | 12 | Ring and baloon fixation | 5 |
1850-V11OP | 100 | 11 | Fixation Cannula | 5 |
1850-V12OP | 100 | 12 | Fixation Cannula | 5 |
1850-V5SO | 75 | 5 | Fixation Cannula | 5 |
1850-V5MO | 100 | 5 | Fixation Cannula | 5 |
1850-V5LO | 150 | 5 | Fixation Cannula | 5 |
1850-V11MO | 100 | 11 | Fixation Cannula | 5 |
1850-V12MO | 100 | 12 | Fixation Cannula | 5 |
1850-V11SO | 75 | 11 | Fixation Cannula | 5 |
1850-V12SO | 75 | 12 | Fixation Cannula | 5 |
1850-V11LO | 150 | 11 | Fixation Cannula | 5 |
1850-V12LO | 150 | 12 | Fixation Cannula | 5 |
Volkmann MODERN line | ||||
1850-VTO5-75 | 75 | 5 | Fixation Cannula | 5 |
1850-VTO5-100 | 100 | 5 | Fixation Cannula | 10 |
1850-VTO10-75 | 75 | 10 | Fixation Cannula | 10 |
1850-VTO10-100 | 100 | 10 | Fixation Cannula | 10 |
1850-VTO11-75 | 75 | 11 | Fixation Cannula | 10 |
1850-VTO11-100 | 100 | 11 | Fixation Cannula | 10 |
1850-VTO12-75 | 75 | 12 | Fixation Cannula | 10 |
1850-VTO12-100 | 100 | 12 | Fixation Cannula | 10 |
