Thoracic trocars
The latex-free thoracic trocars are designed to be used in thoracoscopic and other minimally invasive procedures to provide access for instruments into the thoracic cavity when insufation is not required.
Product description
The latex-free Volkmann thoracic trocars are designed to be used in thoracoscopic and other minimally invasive procedures to provide access for instruments into the thoracic cavity when insufation is not required.
- The thoracic trocars consist of a blunt tip obturator to prevent damage to internal structures and a wide threaded cannula to provide stability and reduce cannula movement during instrument manipulation and exchange.
- The spiral cannula of thoracic trocars allows for greater adhesion of the trocar to the tissue, contributing to its stable fixation in the wound.

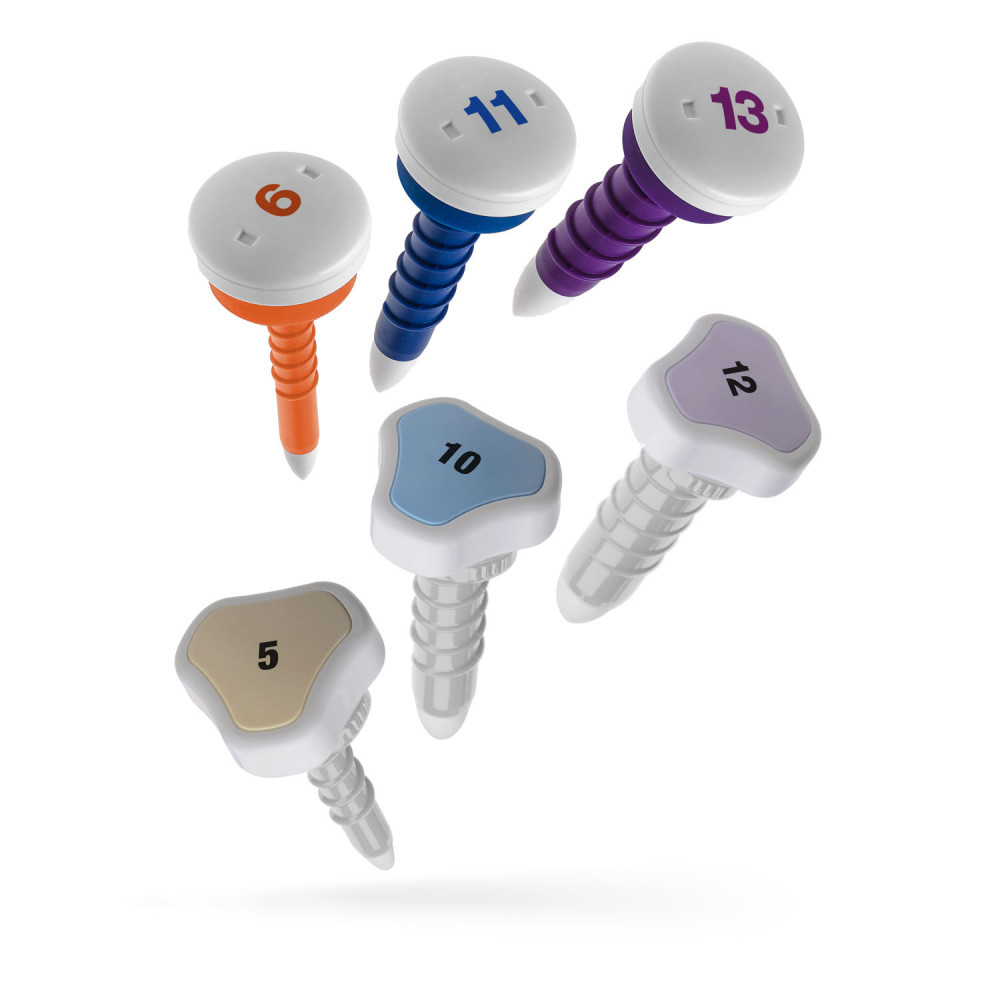

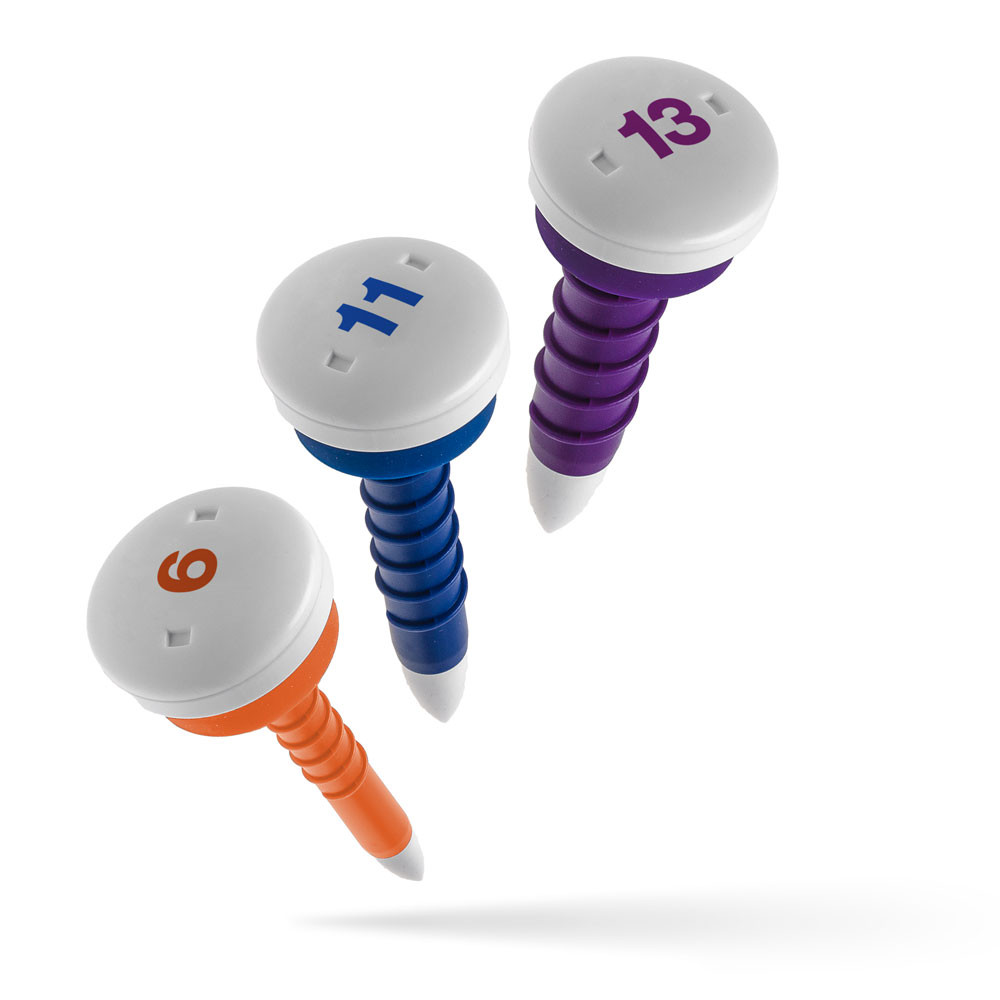

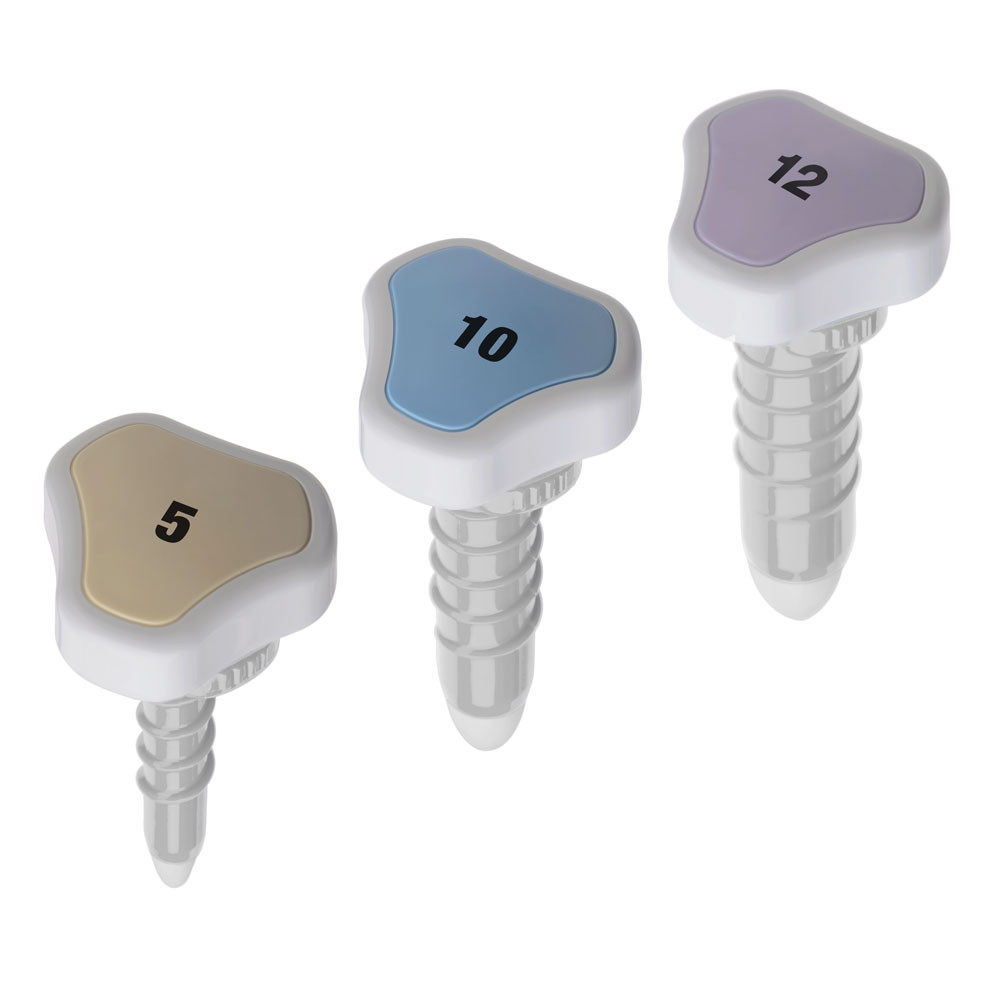

- Available in 6, 10, 11, 12, 13, 15 mm diameters. Each size is color coded for easy identification.
- The triangular cover is provided with beveled ends, allowing for comfortable hand keeping and facilitating trocar insertion with minimal error risk.
- Product sterile and for single use.
Order information
| Ref | Length mm | O.D. mm | Type of fixation | Package |
|---|---|---|---|---|
| Volkmann Classic line | ||||
| 1850-V5SBOR | 75 | 5 | Ring and baloon fixation | 5 |
| 1850-V5MBOR | 100 | 5 | Ring and baloon fixation | 5 |
| 1850-V10MBOR | 100 | 10 | Ring and baloon fixation | 5 |
| 1850-V12MBOA | 100 | 12 | Threaded Anchor and baloon fixation | 5 |
| 1850-V12MBOR | 100 | 12 | Ring and baloon fixation | 5 |
| 1850-V11OP | 100 | 11 | Fixation Cannula | 5 |
| 1850-V12OP | 100 | 12 | Fixation Cannula | 5 |
| 1850-V5SO | 75 | 5 | Fixation Cannula | 5 |
| 1850-V5MO | 100 | 5 | Fixation Cannula | 5 |
| 1850-V5LO | 150 | 5 | Fixation Cannula | 5 |
| 1850-V11MO | 100 | 11 | Fixation Cannula | 5 |
| 1850-V12MO | 100 | 12 | Fixation Cannula | 5 |
| 1850-V11SO | 75 | 11 | Fixation Cannula | 5 |
| 1850-V12SO | 75 | 12 | Fixation Cannula | 5 |
| 1850-V11LO | 150 | 11 | Fixation Cannula | 5 |
| 1850-V12LO | 150 | 12 | Fixation Cannula | 5 |
| Volkmann MODERN line | ||||
| 1850-VTO5-75 | 75 | 5 | Fixation Cannula | 5 |
| 1850-VTO5-100 | 100 | 5 | Fixation Cannula | 10 |
| 1850-VTO10-75 | 75 | 10 | Fixation Cannula | 10 |
| 1850-VTO10-100 | 100 | 10 | Fixation Cannula | 10 |
| 1850-VTO11-75 | 75 | 11 | Fixation Cannula | 10 |
| 1850-VTO11-100 | 100 | 11 | Fixation Cannula | 10 |
| 1850-VTO12-75 | 75 | 12 | Fixation Cannula | 10 |
| 1850-VTO12-100 | 100 | 12 | Fixation Cannula | 10 |
