Nephrostomy balloon dilator sets
Used to dilate the musculofascial tract and renal capsule establishing a Nephrostomy tract during a percutaneous procedure. Includes firm amplatz renal sheath, rated for inflation pressure up to 17 atm. Radiopaque marker to confirm balloon position.
Product description
Is also known as a nephrotic balloon dilator. Used to dilate the musculofascial tract and renal capsule establishing a Nephrostomy tract during a percutaneous procedure.
- Designed to maintain 30 Fr diameter under high pressure.
- Designed to provide effective, uniform dilation along the nephrostomy tract.
- Includes firm amplatz renal sheath.
- Includes Guide Wire: 0.035 inch.
- Rated for inflation pressure up to 17 ATM.
- Radiopaque marker to confirm balloon position.
Code key: NBD-XXYY-M
- NBD: Nephrostomy Balloon Dilator.
- XX: Balloon diameter, Fr.
- YY: Balloon length, cm.
- M: Inflation system (optional).
- S: 10cc syringe (optional).

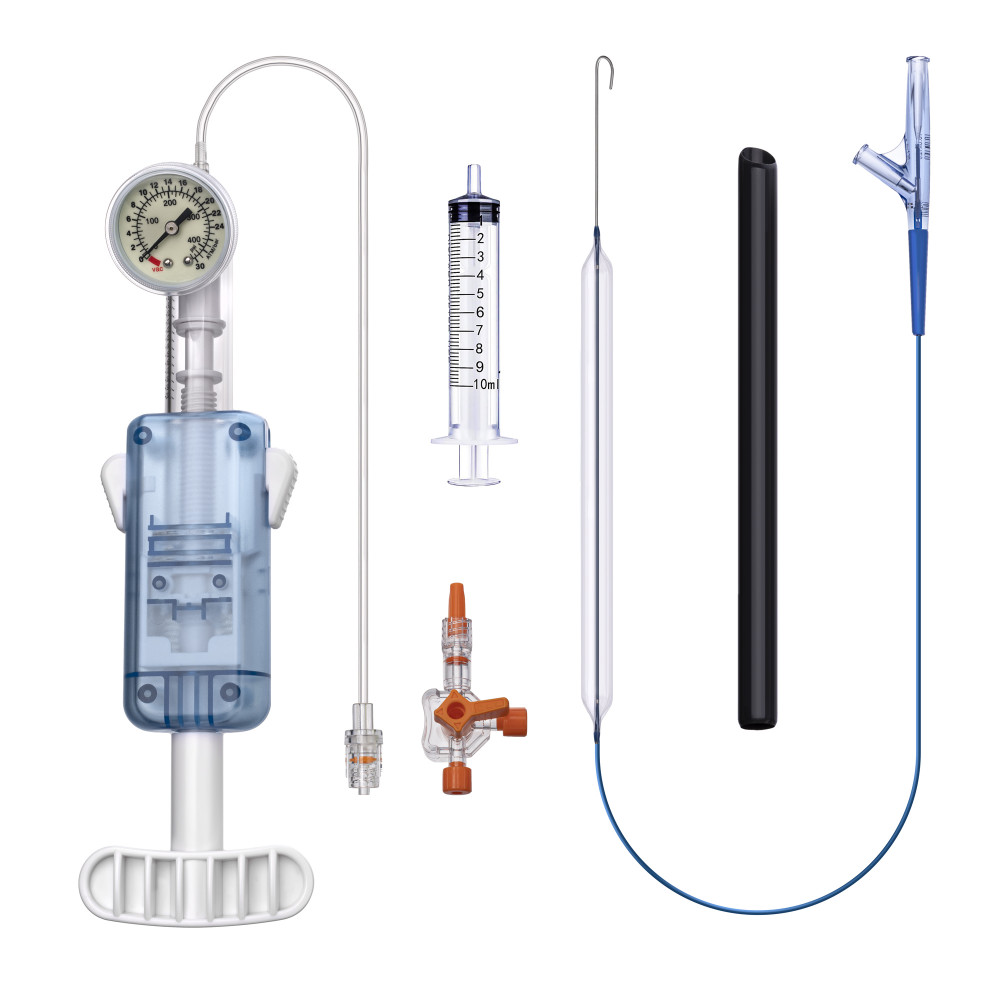

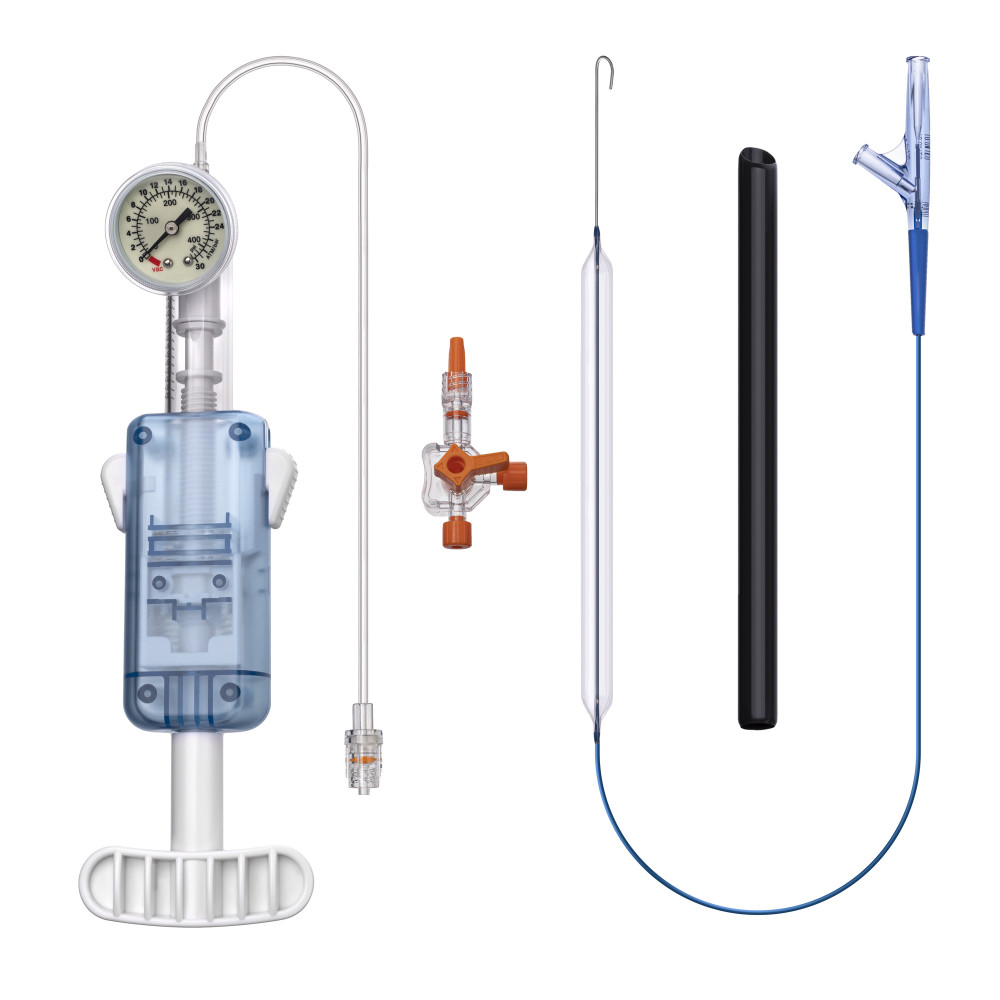

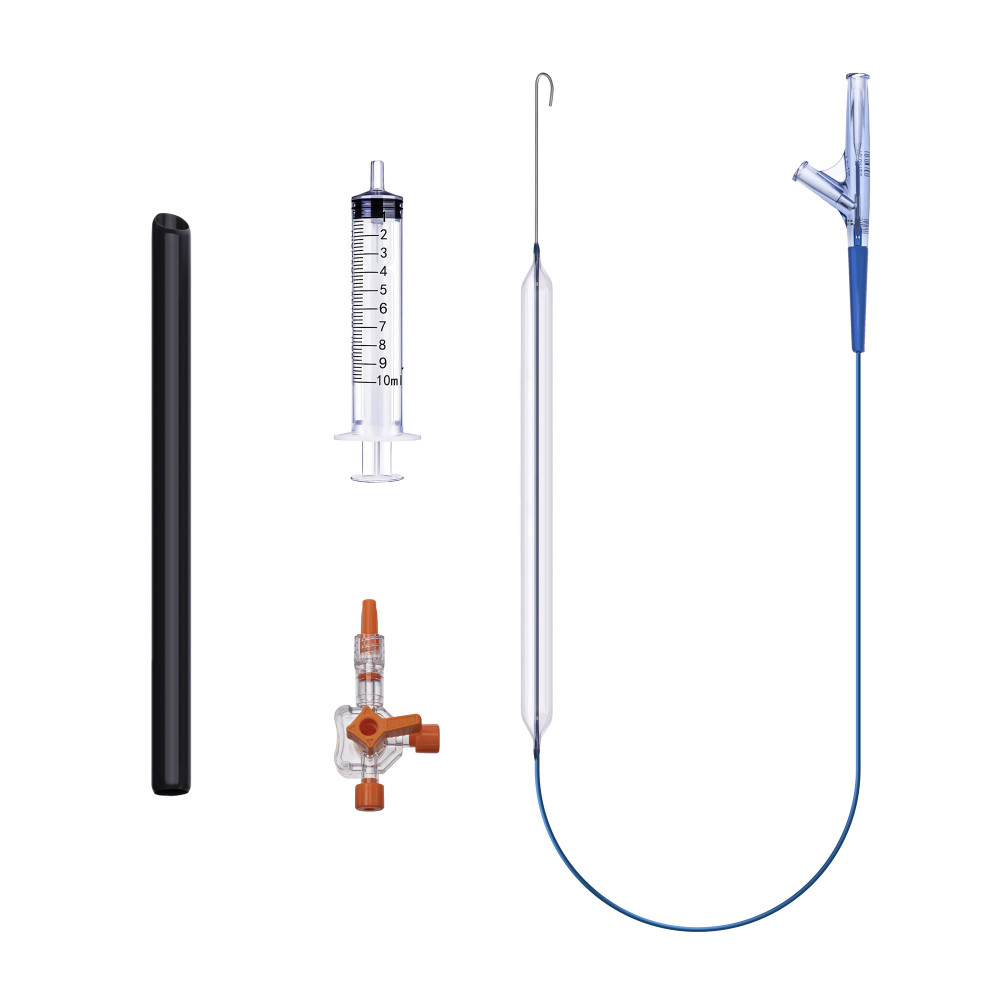

Kit contains:
- High pressure nephrostomy balloon dilator.
- 30 Fr Amplatz Renal Sheath.
- High pressure 3 way stopcock.
- Guide Wire: 0.035 inch.
Order information
| REF | Balloon size, Fr | Catheter size, Fr | Shaft length, cm | Syringe | Inflation device | Box Qty (inner/midbox/outer) |
|---|---|---|---|---|---|---|
| NBD-3012 | 30 | 7 | 55 | — | — | 1/15/100 |
| NBD-3012-S | 30 | 7 | 55 | + | — | 1/15/100 |
| NBD-3012-M | 30 | 7 | 55 | — | + | 1/15/100 |
