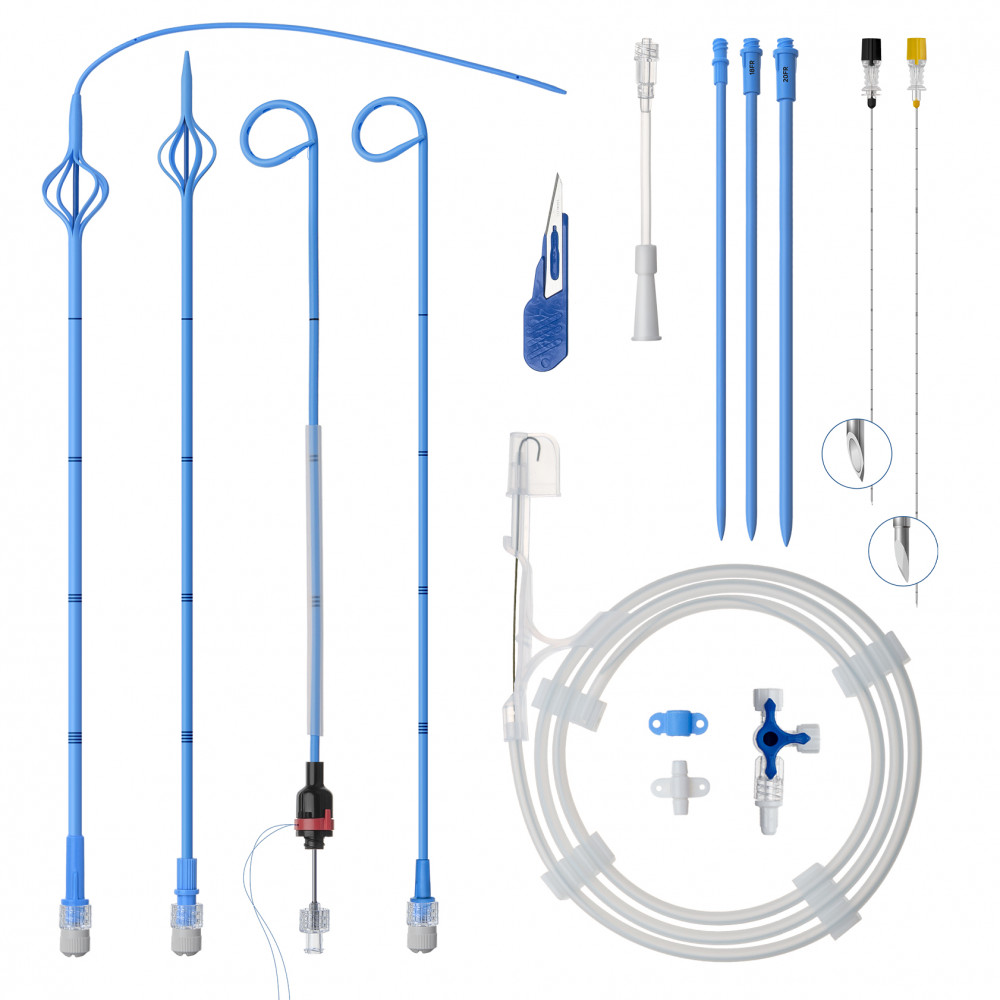

Percutaneous Nephrostomy Sets

Invumed offers a complete catheter sets based on Malecot or Pigtail drainage catheters: Pigtail design, Malecote design, Re-entry nephrostomy catheter, Pigtail with String lock.

Percutaneous Nephrostomy Sets
Percutaneous Nephrostomy Pigtail Catheters kits
Percutaneous Nephrostomy Malecot Catheters kits
One step Nephrostomy catheter sets
String lock Nephrostomy catheter sets
Re-entry nephrostomy malecot catheters
Percutaneous Nephrostomy Sets
Percutaneous Nephrostomy Pigtail Catheters kits
Percutaneous Nephrostomy Malecot Catheters kits
One step Nephrostomy catheter sets
String lock Nephrostomy catheter sets
Re-entry nephrostomy malecot catheters

Product description

  • A convenient complete sets for percutaneous placement of drainage catheter – Pigtail design, Malecote design, Re-entry nephrostomy catheter (malecote design with uretral stent extension), Pigtail with String lock (for better anchoring).
  • All nephrostomy catheters are single lumen, for adult or pediatric use, 4-24 Fr diameter sizes and 30 cm length (more length optionaly).
  • Catheters are made with soft polyurethane and provides superior biocompatibility and drainage.
  • Catheters highly radiopaque for precise placement.
  • All sets supplied with the necessary and optional items that adapted to each other to facilitate usage and material secure positioning like: dilatators, needles, guide wire, drainage bag connector.
  • All kits comes with PTFE J-tip 100 cm guide wire with nitinol core provides easy flexibility and anti break advantages (the lunderquist wire is also available as an option).

  • Individually packed in medical grade paper poly pouch.

Download brochure

Order information

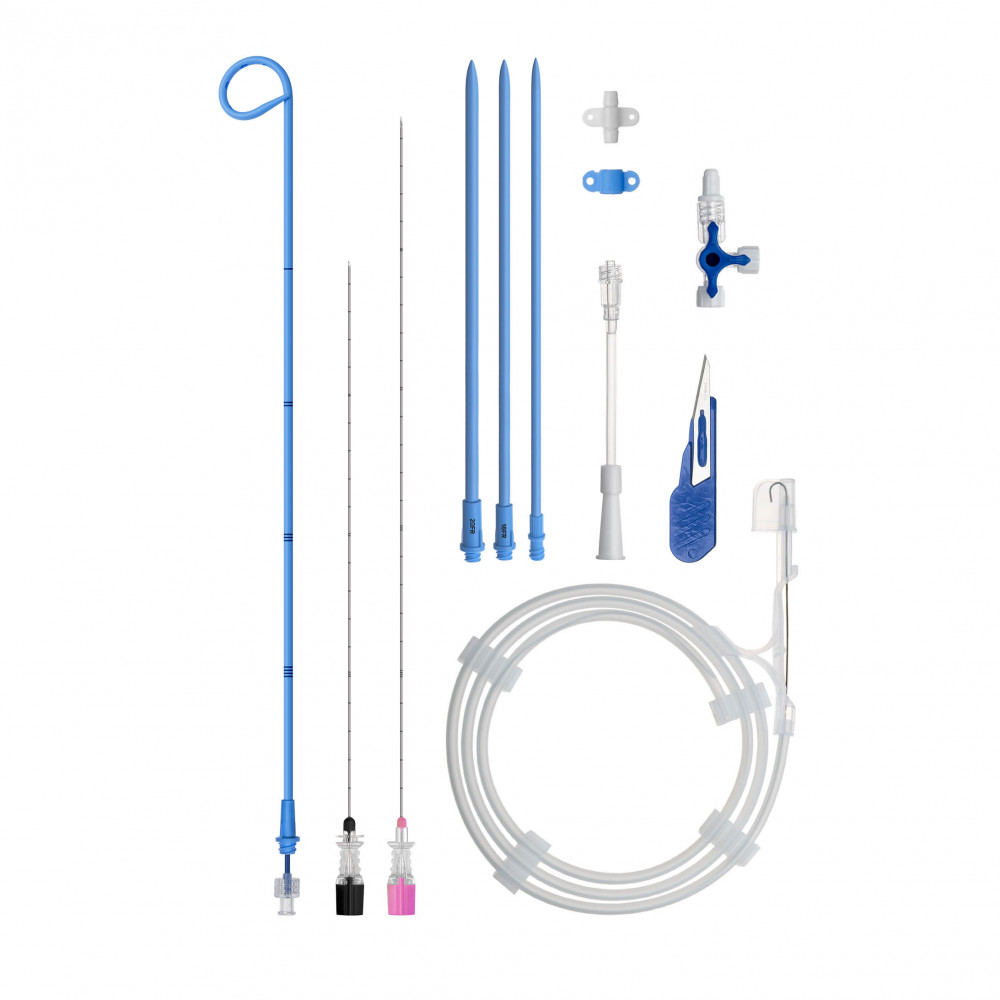

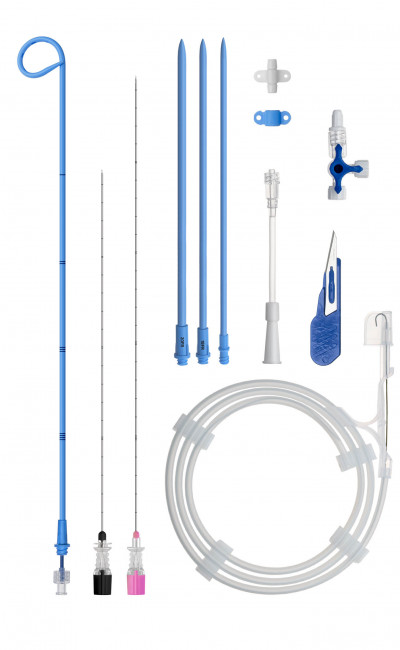

Pigtail Type Nephrostomy Catheter Sets

Pigtail (J-tip) catheter is designed to Use for percutaneous placement in the renal pelvis for nephrostomy drainage as well general purpose drainage.

Sets Contains:

Accessories supplied with Single Nephrostomy Pigtail Catheter:

  • Connection Tube (12Fr or16Fr).
  • Fixation Wings.

Accessories supplied with Nephrostomy Pigtail Catheter Kit:

  • Connection Tube (12Fr or16Fr)
  • Puncture needle
  • Chiba Needle
  • Fascial Dilators х 3pcs
  • Scalpel
  • J- End Guide Wire
  • Fixation Wings
  • Stopcock. (Optional)
  • Urine Bag. (Optional)

Ref. code key: NEP-XX-YY-J-K-H

  • NEP: Nephrostomy Catheter
  • XX: Size in Fr.
  • YY: Catheter length in cm
  • J: J-type (pigtail) cathetr
  • K: Kit version
  • H: Hydrophilic coating
Pigtail Type Nephrostomy Catheter Sets
Catheter size, FrPigtail Nephrostomy CatheterPigtail Nephrostomy Catheter with hydrophilic coatingPigtail Nephrostomy Catheter SetsPigtail Nephrostomy Catheter with hydrophilic coating SetsBox Qty (inner/outer)
4NEP-04-30-JNEP-04-30-J-HNEP-04-30-J-KNEP-04-30-J-K-H1/10
5NEP-05-30-JNEP-05-30-J-HNEP-05-30-J-KNEP-05-30-J-K-H1/10
6NEP-06-30-JNEP-06-30-J-HNEP-06-30-J-KNEP-06-30-J-K-H1/10
7NEP-07-30-JNEP-07-30-J-HNEP-07-30-J-KNEP-07-30-J-K-H1/10
8NEP-08-30-JNEP-08-30-J-HNEP-08-30-J-KNEP-08-30-J-K-H1/10
10NEP-10-30-JNEP-10-30-J-HNEP-10-30-J-KNEP-10-30-J-K-H1/10
12NEP-12-30-JNEP-12-30-J-HNEP-12-30-J-KNEP-12-30-J-K-H1/10
14NEP-14-30-JNEP-14-30-J-HNEP-14-30-J-KNEP-14-30-J-K-H1/10
16NEP-16-30-JNEP-16-30-J-HNEP-16-30-J-KNEP-16-30-J-K-H1/10
18NEP-18-30-JNEP-18-30-J-HNEP-18-30-J-KNEP-18-30-J-K-H1/10
20NEP-20-30-JNEP-20-30-J-HNEP-20-30-J-KNEP-20-30-J-K-H1/10
22NEP-22-30-JNEP-22-30-J-HNEP-22-30-J-KNEP-22-30-J-K-H1/10
24NEP-24-30-JNEP-24-30-J-HNEP-24-30-J-KNEP-24-30-J-K-H1/10

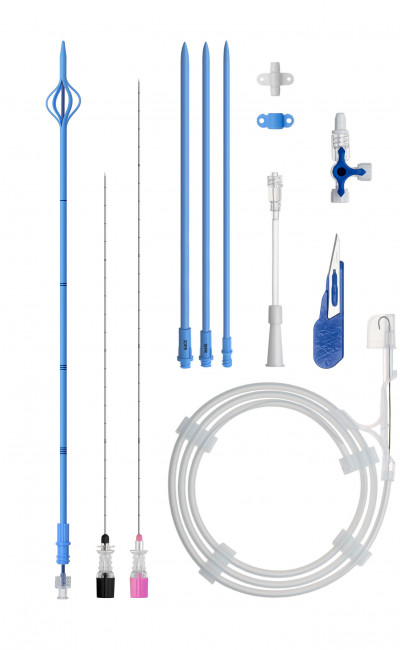

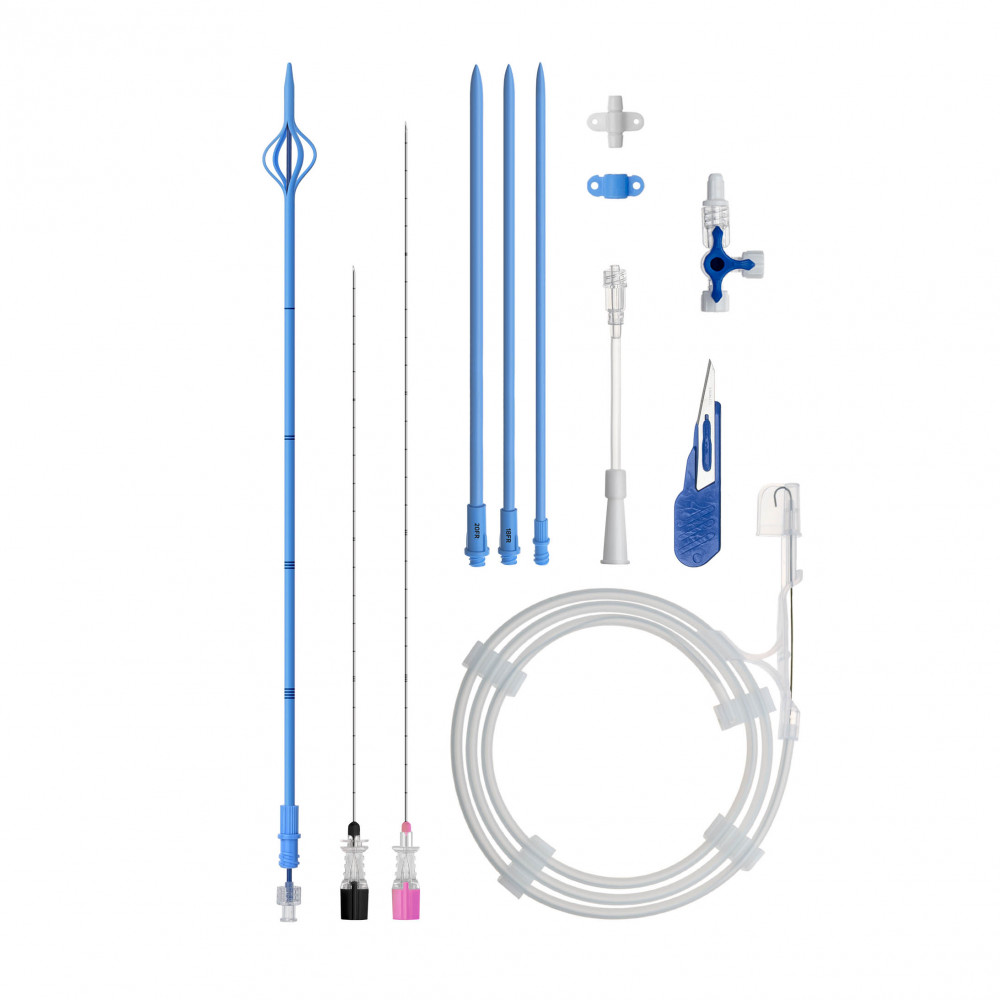

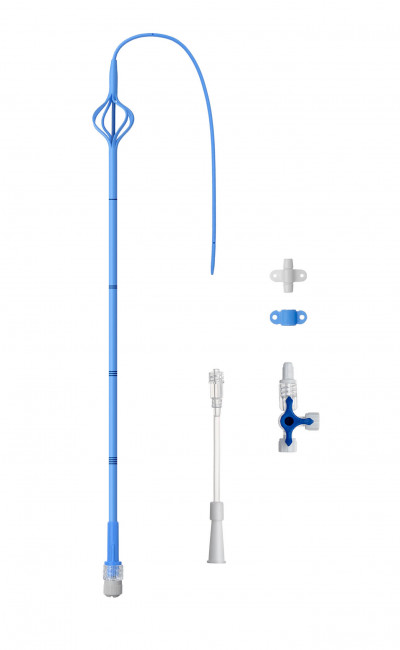

Malecot Type Nephrostomy Catheter Sets

Malecot (tulip-shaped) catheter — the catheter tip retracts slightly so that the tulip portion is larger than the tube diameter. These catheters are mainly used when the renal pelvis is small (because the patient is small) or when a large stag horn calculus is present.

Sets Contains:

Accessories supplied with Single Nephrostomy Malecot Catheter:

  • Connection Tube (12Fr or16Fr).
  • Fixation Wings.

Accessories supplied with Nephrostomy Malecot Catheter Kit:

  • Connection Tube (12Fr or16Fr)
  • Puncture needle
  • Chiba Needle
  • Fascial Dilators х 3pcs
  • Scalpel
  • J- End Guide Wire
  • Fixation Wings
  • Stopcock. (Optional)
  • Urine Bag. (Optional)

Ref. code key: NEP-XX-YY-M-K-H

  • NEP: Nephrostomy Catheter
  • XX: Size in Fr.
  • YY: Catheter length in cm
  • M: Malecot catheter
  • K: Kit version
  • H: Hydrophilic coating
Malecot Type Nephrostomy Catheter Sets
Catheter size, FrMalecot Nephrostomy CatheterMalecot Nephrostomy Catheter with hydrophilic coatingMalecot Nephrostomy Catheter SetsMalecot Nephrostomy Catheter with hydrophilic coating SetsBox Qty (inner/outer)
6NEP-06-30-MNEP-06-30-M-HNEP-06-30-M-KNEP-06-30-M-K-H1/10
7NEP-07-30-MNEP-07-30-M-HNEP-07-30-M-KNEP-07-30-M-K-H1/10
8NEP-08-30-MNEP-08-30-M-HNEP-08-30-M-KNEP-08-30-M-K-H1/10
10NEP-10-30-MNEP-10-30-M-HNEP-10-30-M-KNEP-10-30-M-K-H1/10
12NEP-12-30-MNEP-12-30-M-HNEP-12-30-M-KNEP-12-30-M-K-H1/10
14NEP-14-30-MNEP-14-30-M-HNEP-14-30-M-KNEP-14-30-M-K-H1/10
16NEP-16-30-MNEP-16-30-M-HNEP-16-30-M-KNEP-16-30-M-K-H1/10
18NEP-18-30-MNEP-18-30-M-HNEP-18-30-M-KNEP-18-30-M-K-H1/10
20NEP-20-30-MNEP-20-30-M-HNEP-20-30-M-KNEP-20-30-M-K-H1/10
22NEP-22-30-MNEP-22-30-M-HNEP-22-30-M-KNEP-22-30-M-K-H1/10
24NEP-24-30-MNEP-24-30-M-HNEP-24-30-M-KNEP-24-30-M-K-H1/10

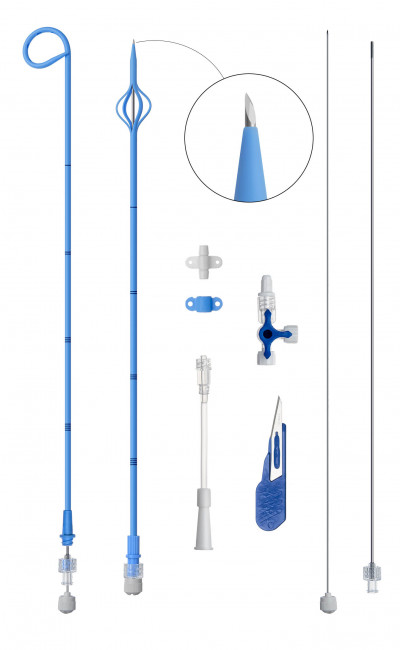

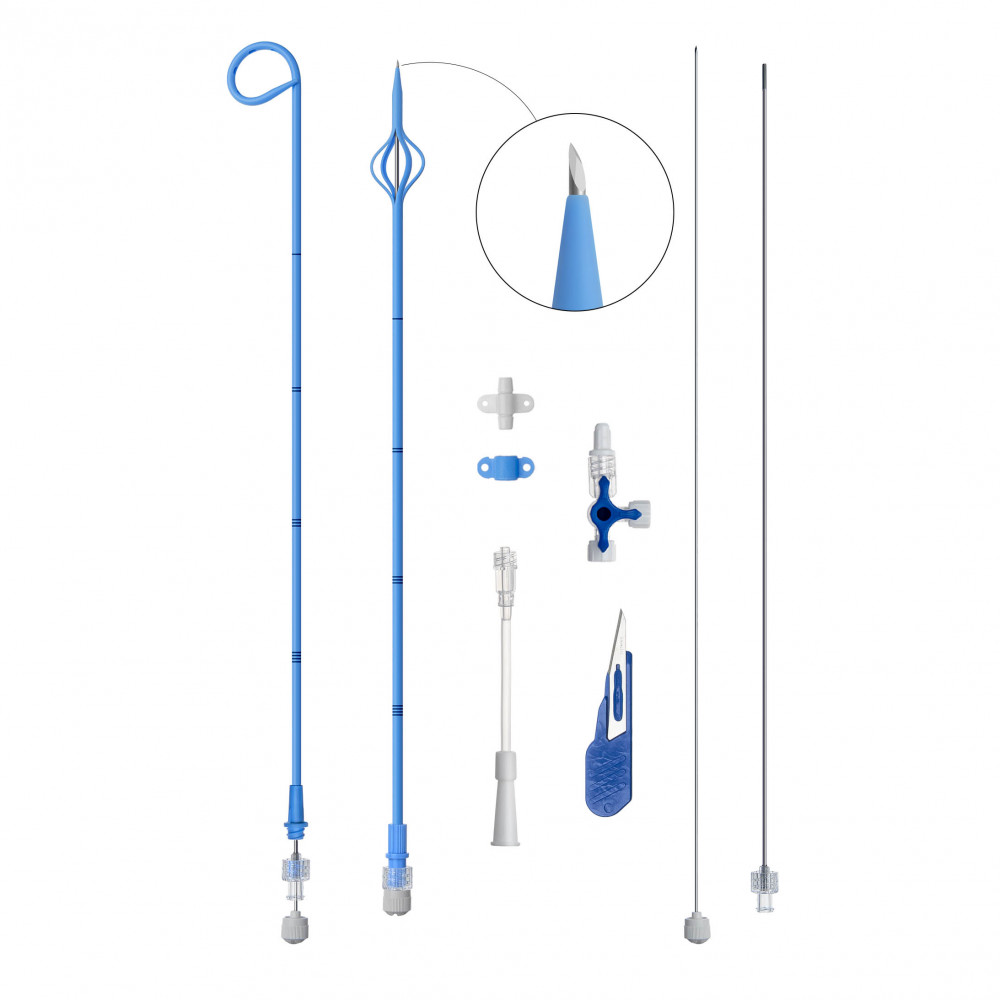

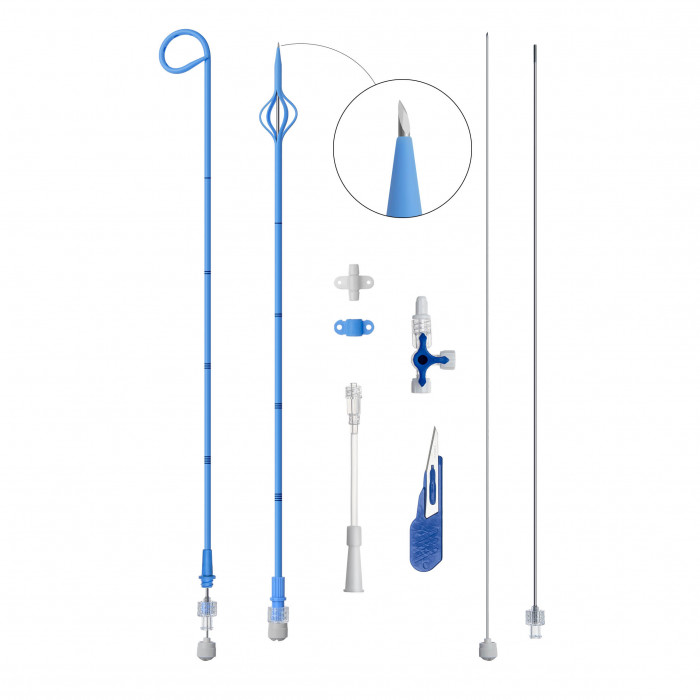

One step Nephrostomy Catheter Sets

When this set is used the nephrostomy catheter (Malecot or Pigtail) can be applied in one step together with the puncture. Therefore this is the fastest way to apply a nephrostomy. Cannula, obturator and catheter can be arrested by Luer-Lock adapters.

Sets Contains:

  • Connection Tube (12Fr or16Fr)
  • Scalpel
  • Fixation Wings
  • Stopcock. (Optional)
  • Urine Bag. (Optional)

Ref. code key: NEP-XX-YY-T-OS-H

  • NEP: Nephrostomy Catheter One Step
  • XX: Size in Fr.
  • YY: Catheter length in cm
  • T: Type of catheter tip — (M)For Malecot, (J) For J type (pigtail)
  • OS: One step catheter
  • H: Hydrophilic coating
One step Nephrostomy Catheter Sets
Catheter size, FrPigtail Nephrostomy CatheterPigtail Nephrostomy Catheter with hydrophilic coatingMalecot Nephrostomy Catheter SetsMalecot Nephrostomy Catheter with hydrophilic coating SetsBox Qty (inner/outer)
6NEP-06‐30‐J‐OSNEP-06‐30‐J‐OS-HNEP-06‐30-M-OSNEP-06‐30-M-OS-H1/10
8NEP-08‐30‐J‐OSNEP-08‐30‐J‐OS-HNEP-08‐30-M-OSNEP-08‐30-M-OS-H1/10
10NEP-10‐30‐J‐OSNEP-10‐30‐J‐OS-HNEP-10‐30-M-OSNEP-10‐30-M-OS-H1/10
12NEP-12‐30‐J‐OSNEP-12‐30‐J‐OS-HNEP-12‐30-M-OSNEP-12‐30-M-OS-H1/10
14NEP-14‐30‐J‐OSNEP-14‐30‐J‐OS-HNEP-14‐30-M-OSNEP-14‐30-M-OS-H1/10
16NEP-16‐30‐J‐OSNEP-16‐30‐J‐OS-HNEP-16‐30-M-OSNEP-16‐30-M-OS-H1/10

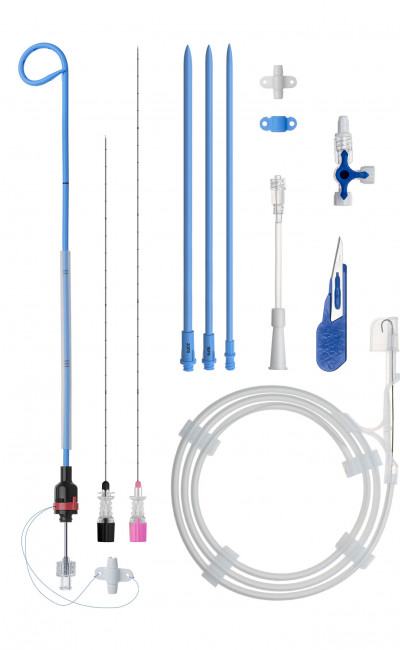

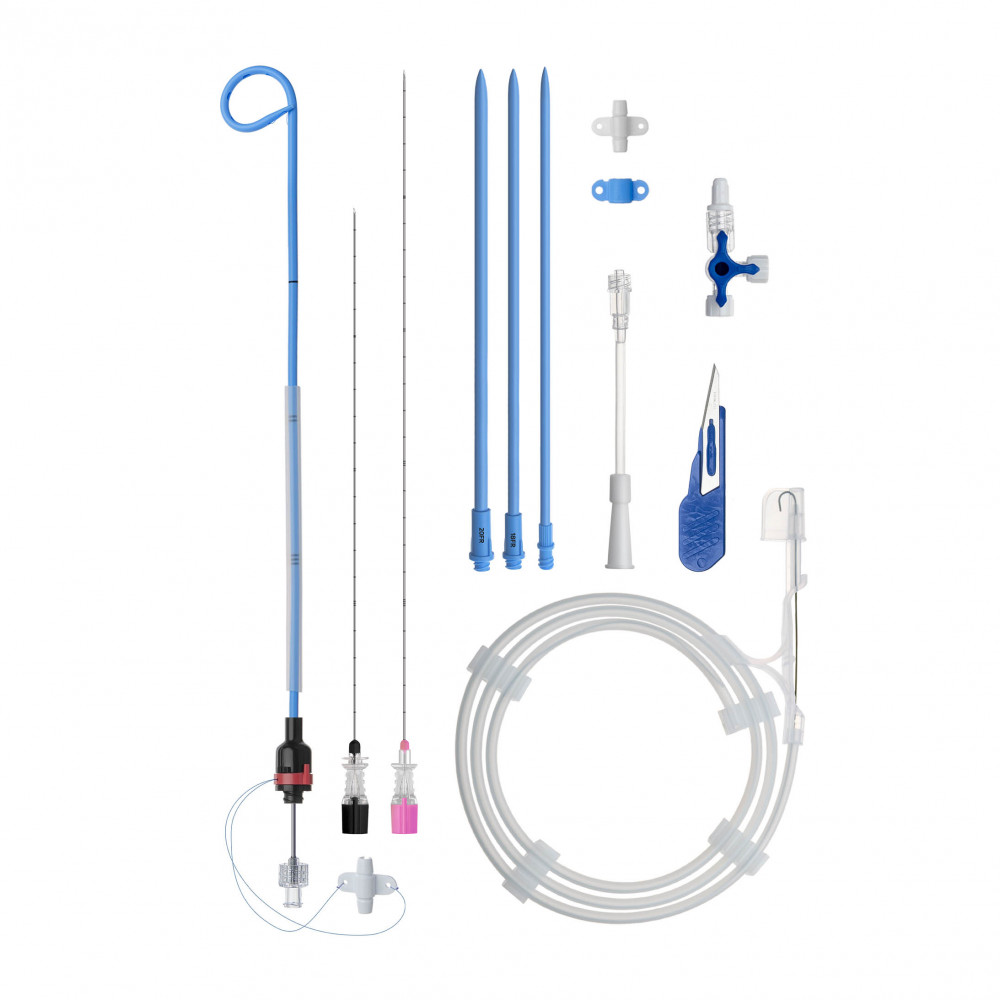

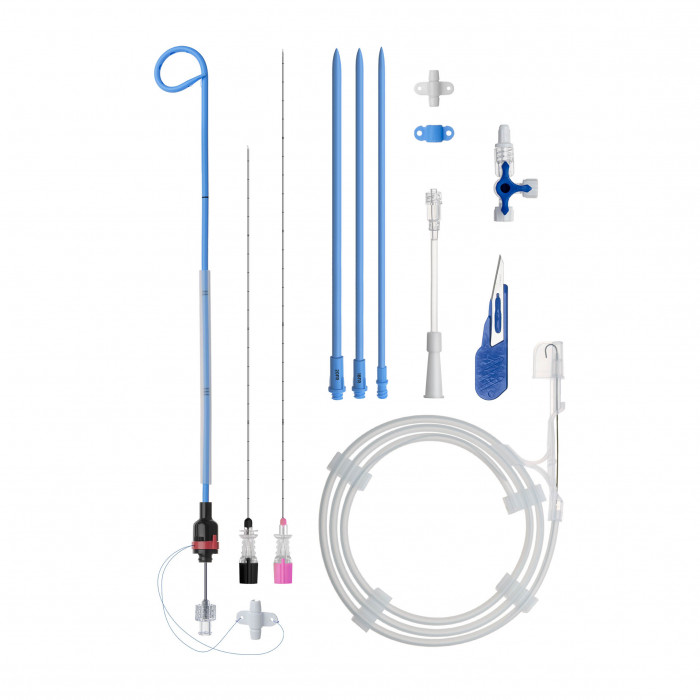

String lock Nephrostomy Catheter Sets

The safety string lock system provides secure placement for nephrostomy drainage to avoid slipping of the catheter to outside. It is the same design for our Nephrostomy catheter range above but has different hub. The hub is designed to serve locking mechanism.

  • Ref. code key: Add (L) at t he end o f any code. XX: Size in Fr. YY: Catheter Length in cm.
String lock Nephrostomy Catheter Sets

Nephrostomy catheter Pigtail with String lock and kit codes:

Single Nephrostomy Pigtail catheter with String lockSingle Nephrostomy Pigtail catheter with String lock with hydrophilic coatingNephrostomy Pigtail catheter kits with String lockNephrostomy Pigtail catheter kits with String lock with hydrophilic coating
NEP-XX-YY-J-LNEP-XX-YY-J-H-LNEP-XX-YY-J-K-LNEP-XX-YY-J-K-H-L

Nephrostomy catheter Malecot with String lock and kit codes:

Single Nephrostomy Malecot catheter with String lockSingle Nephrostomy Malecot catheter with String lock with hydrophilic coatingNephrostomy Malecot catheter kits with String lockNephrostomy Malecot catheter kits with String lock with hydrophilic coating
NEP-XX-YY-M-LNEP-XX-YY-M-H-LNEP-XX-YY-M-K-LNEP-XX-YY-M-K-H-L

One step Nephrostomy catheter Pigtail and Malecot type with string lock codes:

One step nephrostomy catheter Pigtail  with String lockOne step nephrostomy catheter Pigtail  with String lock with hydrophilic coatingOne step nephrostomy catheter Malecot  with String lockOne step nephrostomy catheter Malecot  with String lock with hydrophilic coating
NEP-XX-YY-J-OS-LNEP-XX-YY-J-OS-H-LNEP-XX-YY-M-OS-LNEP-XX-YY-M-OS-H-L

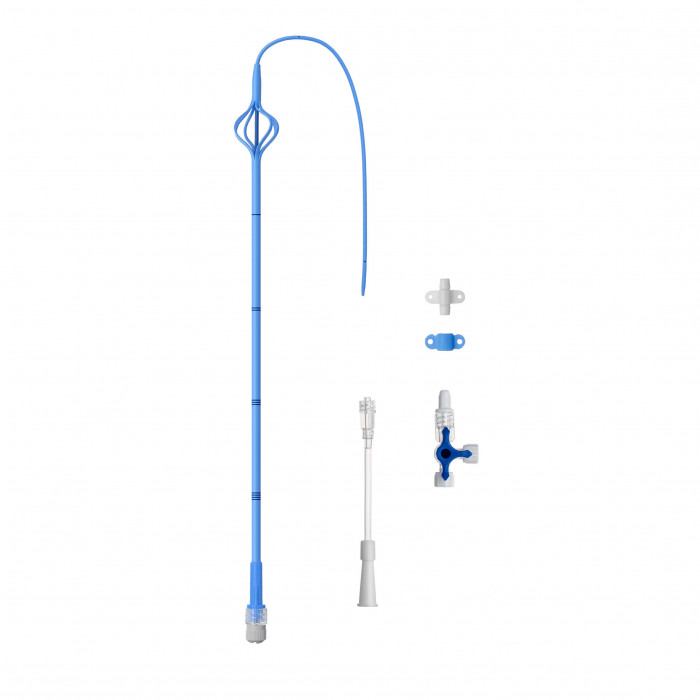

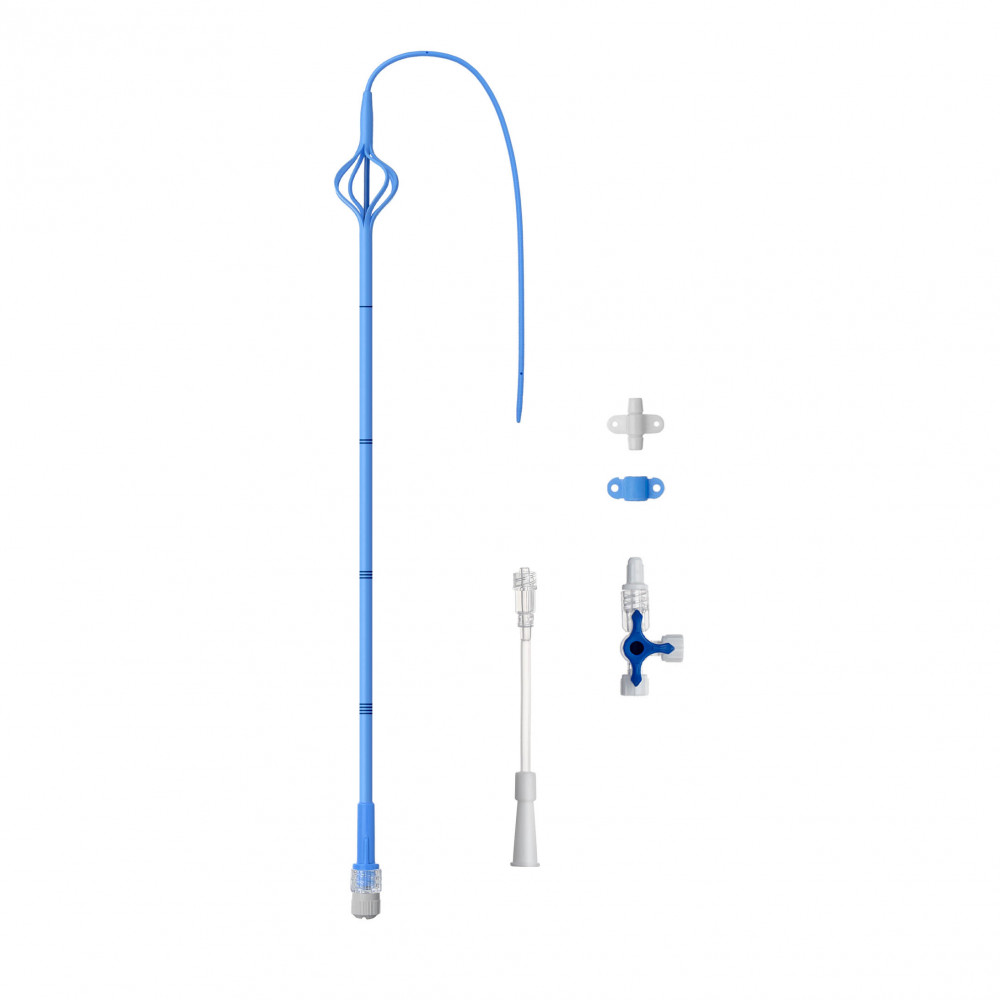

Re-entry nephrostomy malecot catheters

Used as a Nephrostomy catheter and Uretal stents. Used for drainage, tract maturation and maintenance percutaneous procedures. Used for drainage of kidney and bladder at the same time.

Ref. code key: NEP-x/XX-YY-M-H

  • NEP: Nephrostomy Catheter
  • XX: Re Entry Tube Size In Fr / Catheter Size In Fr
  • YY: Catheter length in cm
  • M: Malecot catheter
  • H: Hydrophilic coating

Sets Contains:

  • Connection Tube (12Fr or16Fr)
  • Fixation Wings
  • Stopcock. (Optional)
  • Urine Bag. (Optional)
Re-entry nephrostomy malecot catheters
Catheter size, FrRe-entry Malecot Nephrostomy CatheterRe-entry Malecot Nephrostomy Catheter with hydrophilic coatingBox Qty (inner/outer)
10NEP‐4/10‐30-MNEP‐4/10‐30-M-H1/10
12NEP‐5/12‐30-MNEP‐5/12‐30-M-H1/10
14NEP‐6/14‐30-MNEP‐6/14‐30-M-H1/10
16NEP‐7/16‐30-MNEP‐7/16‐30-M-H1/10
18NEP‐8/18‐30-MNEP‐8/18‐30-M-H1/10
20NEP‐8/20‐30-MNEP‐8/20‐30-M-H1/10
22NEP‐8/22‐30-MNEP‐8/22‐30-M-H1/10
24NEP‐8/24‐30-MNEP‐8/24‐30-M-H1/10
