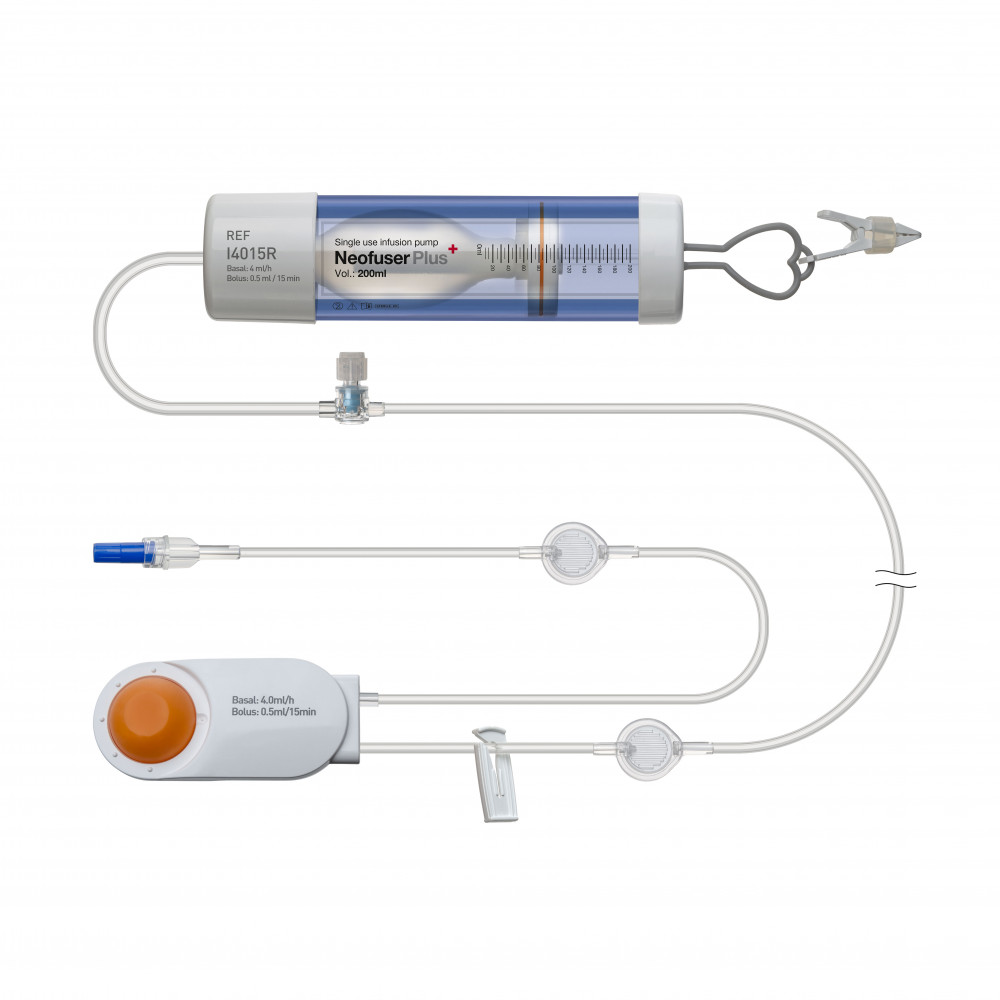

Neofuser Plus microinfusion pumps with single flow rate with PCA
A Patient Controlled Analgesia (PCA) pump for the postoperative analgesia. With Neofuser Plus the pain medication is administered as a combination of the preset continuous basal rate and the patient controlled bolus administration.
Product description
A Patient Controlled Analgesia (PCA) pump for the postoperative analgesia. With Neofuser Plus the pain medication is administered as a combination of the preset continuous basal rate and the patient controlled bolus administration.
- Pump volume: 60(S), 100(M), 200(I), 275(L), 450(X) ml.
- Basal rates: 0.5, 1.0, 2.0, 4.0, 5.0, 8, 10 ml/h.
- Bolus volumes: 0.5(R), 1.0(E), 2.0(W) ml.
- Bolus lock timer: 8, 15, 60 min.
- Not made with latex, BPA, or DEHP.
- With Luer-Lock patient connector.
- Efficient particle and self-venting 0,2 μm filter.
- Progressive flow indicator.
- Portable clip designed to easily mount on IV pole stands.
Order information
| Basal Flow Rate, ml/hr | Z Bolus Volume, ml | YY Lock-out Period, min | Ref. Nominal Volume | ||||
|---|---|---|---|---|---|---|---|
| 60 ml | 100 ml | 200 ml | 275 ml | 450 ml | |||
| 0,5 | 0.5(R), 1.0(E), 2.0(W) | 08, 15, 60 | S05YYZ | M05YYZ | I05YYZ | L05YYZ | X05YYZ |
| 1 | 0.5(R), 1.0(E), 2.0(W) | 08, 15, 60 | S10YYZ | M10YYZ | I10YYZ | L10YYZ | X10YYZ |
| 2 | 0.5(R), 1.0(E), 2.0(W) | 08, 15, 60 | S20YYZ | M20YYZ | I20YYZ | L20YYZ | X20YYZ |
| 4 | 0.5(R), 1.0(E), 2.0(W) | 08, 15, 60 | S40YYZ | M40YYZ | I40YYZ | L40YYZ | X40YYZ |
| 5 | 0.5(R), 1.0(E), 2.0(W) | 08, 15, 60 | S50YYZ | M50YYZ | I50YYZ | L50YYZ | X50YYZ |
| 8 | 0.5(R), 1.0(E), 2.0(W) | 08, 15, 60 | S80YYZ | M80YYZ | I80YYZ | L80YYZ | X80YYZ |
| 10 | 0.5(R), 1.0(E), 2.0(W) | 08, 15, 60 | — | — | — | — | X80YYZ |
