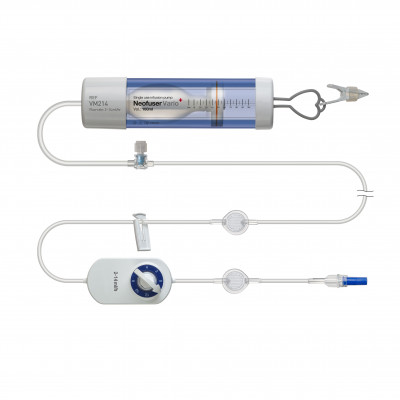

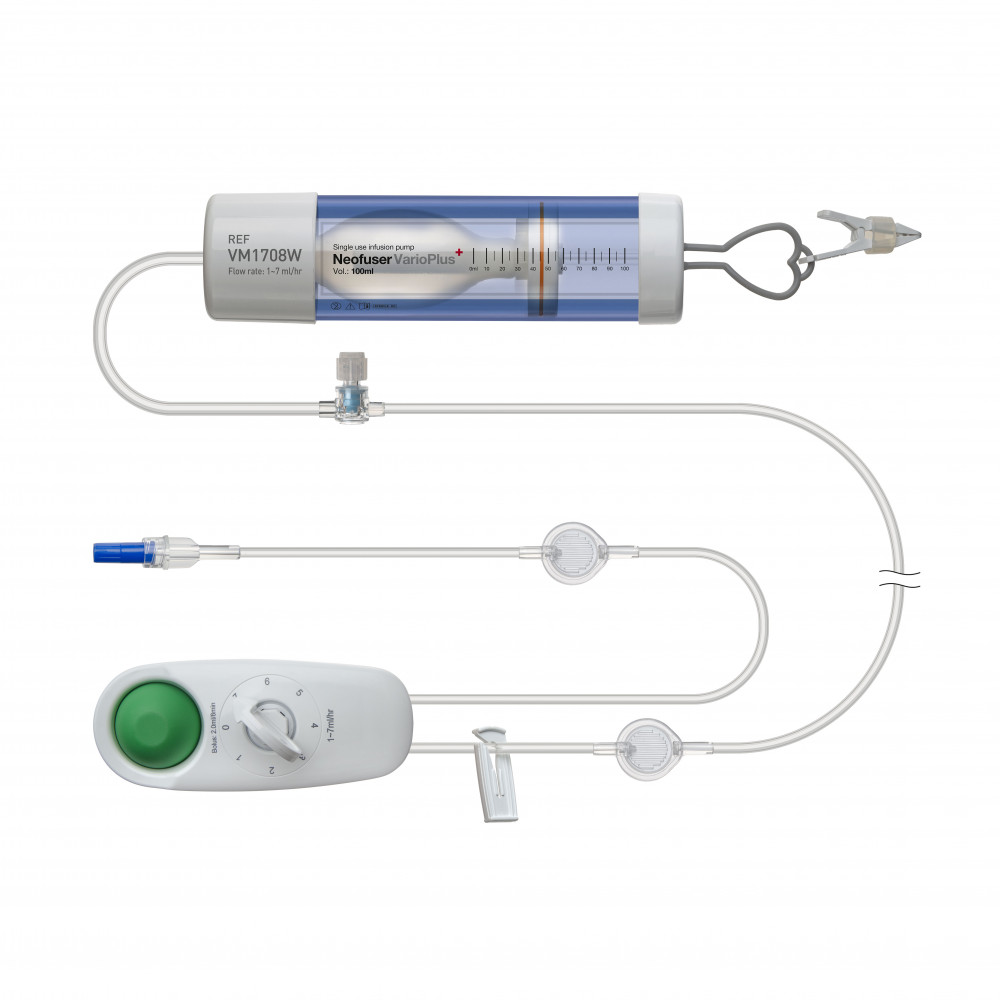

Neofuser Vario Plus microinfusion pumps with multi-flow rates with PCA

This pumps combines the multi-rate function with the bolus function in one model. The multi-rate module offers the possibility, also during drug administration, to choose from seven different flow rates.

Product description

Neofuser Vario Plus combines the multi-rate function with the bolus function in one model. The multi-rate module offers the possibility, also during drug administration, to choose from seven different flow rates. The continuous basal rate is either regulated or completely stopped by a removable key. The selected basal rate is confirmed by a clearly audible click sound.

  • Pump volume: 100(M), 200(I), 275(L), 450(X), 600(G) ml.
  • Flow rate: 0 – 2 – 4 – 6 – 8 – 10 – 12 – 14 ml/h.
  • Bolus volume: 0.5(R), 1.0(E), 2.0(W) ml.
  • Lock-out-time: 8, 10, 15, 30, 60 min
  • Not made with latex, BPA, or DEHP.
  • With Luer-Lock patient connector.
  • Efficient particle and self-venting two 0,2 μm filter.
  • Progressive flow indicator.
  • Portable clip designed to easily mount on IV pole stands.


Order information

Nominal Volume Bolus Volume, ml Basal Flow Rate, ml/h REF. Lock-out Period, min
0,5; 1,0; 1,5; 2,0; 2,5; 3,0; 3,5 1,0; 2,0; 3,0; 4,0; 5,0; 6,0; 7,0 2,0; 4,0;6,0; 8,0; 10,0; 12,0;  14,0 8 min 10 min 15 min 30 min 60 min
60 ml 0.5 ml     VS053508R VS053510R VS053515R VS053530R VS053560R
    VS1708R VS1710R VS1715R VS1730R VS1760R
1.0 ml     VS053508E VS053510E VS053515E VS053530E VS053560E
    VS1708E VS1710E VS1715E VS1730E VS1760E
2.0 ml     VS053508W VS053510W VS053515W VS053530W VS053560W
    VS1708W VS1710W VS1715W VS1730W VS1760W
100 ml 0.5 ml     VM053508R VM053510R VM053515R VM053530R VM053560R
    VM1708R VM1710R VM1715R VM1730R VM1760R
1.0 ml     VM053508E VM053510E VM053515E VM053530E VM053560E
    VM1708E VM1710E VM1715E VM1730E VM1760E
2.0 ml     VM053508W VM053508W VM053515W VM053530W VM053560W
    VM1708W VM1710W VM1715W VM1730W VM1760W
200 ml 0.5 ml     VI053508R VI053510R VI053515R VI053530R VI053560R
    VI1708R VI1710R VI1715R VI1730R VI1760R
1.0 ml     VI053508E VI053510E VI053515E VI053530E VI053560E
    VI1708E VI1710E VI1715E VI1730E VI1760E
    VI21408E VI21410E VI21415E VI21430E VI21460E
2.0 ml     VI053508W VI053510W VI053515W VI053530W VI053560W
    VI1708W VI1710W VI1715W VI1730W VI1760W
    VI21408W VI21410W VI21415W VI21430W VI21460W
275 ml 0.5 ml     VL053508R VL053510R VL053515R VL053530R VL053560R
    VL1708R VL1710R VL1715R VL1730R VL1760R
1.0 ml     VL053508E VL053510E VL053515E VL053530E VL053560E
    VL1708E VL1710E VL1715E VL1730E VL1760E
    VL21408E VL21410E VL21415E VL21430E VL21460E
2.0 ml     VL053508W VL053510W VL053515W VL053530W VL053560W
    VL1708W VL1710W VL1715W VL1730W VL1760W
    VL21408W VL21410W VL21415W VL21430W VL21460W
450 ml 0.5 ml     VX1708R VX1710R VX1715R VX1730R VX1760R
1.0 ml     VX1708E VX1710E VX1715E VX1730E VX1760E
    VX21408E VX21410E VX21415E VX21430E VX21460E
2.0 ml     VX1708W VX1710W VX1715W VX1730W VX1760W
    VX21408W VX21410W VX21415W VX21430W VX21460W
600 ml 0.5 ml     VG1708R VG1710R VG1715R VG1730R VG1760R
1.0 ml     VG1708E VG1710E VG1715E VG1730E VG1760E
    VG21408E VG21410E VG21415E VG21430E VG21460E
2.0 ml     VG1708W VG1710W VG1715W VG1730W VG1760W
    VG21408W VG21410W VG21415W VG21430W VG21460W
