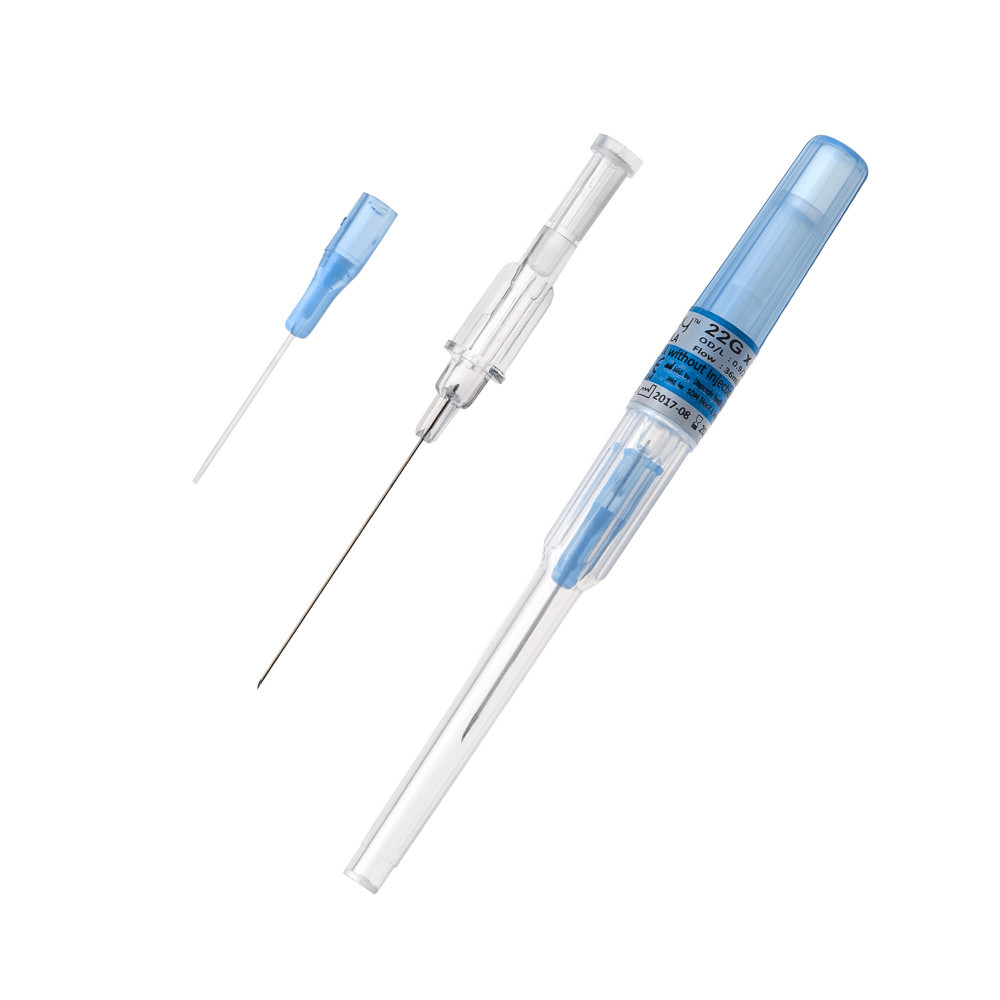

Pen type IV Cannula without wings, without injection port
Siliconized needle, siliconised catheter аvailable in FEP or PTFE material, offer the advantage of potentially fully enclosing the used needle, flashback chamber, transparent needle cover.
Product description
- Pen-type IV cannulas offer the advantage of potentially fully enclosing the used needle for safe disposal.
- Siliconized, Ultra sharp, Stainless Steel, back-cut needle to perform easy and painless venipuncture.
- Catheter аvailable in FEP or PTFE material. Siliconised with proprietary technology ensuring smooth surface and minimal discomfort for both patient and clinician.
- Large flashback Chamber allows quick visualization for successful venipuncture.
- Transparent needle cover to prevent accidental damage to needle and catheter.
- Sterile, single use.
Order information
| Size | Color code | Catheter O.D.mm | Catheter Length mm | Flow Rate (ml/mnt) | Box Qty (inner/outer) |
|---|---|---|---|---|---|
| 14G | Orange | 2.0 | 45 | 270 | 50/500 |
| 16G | Grey | 1.7 | 45 | 200 | 50/500 |
| 17G | White | 1.5 | 45 | 125 | 50/500 |
| 18G | Green | 1.3 | 45 | 90 | 50/500 |
| 20G | Pink | 1.1 | 32 | 60 | 50/500 |
| 22G | Blue | 0.9 | 25 | 36 | 50/500 |
| 24G | Yellow | 0.7 | 19 | 23 | 50/500 |
