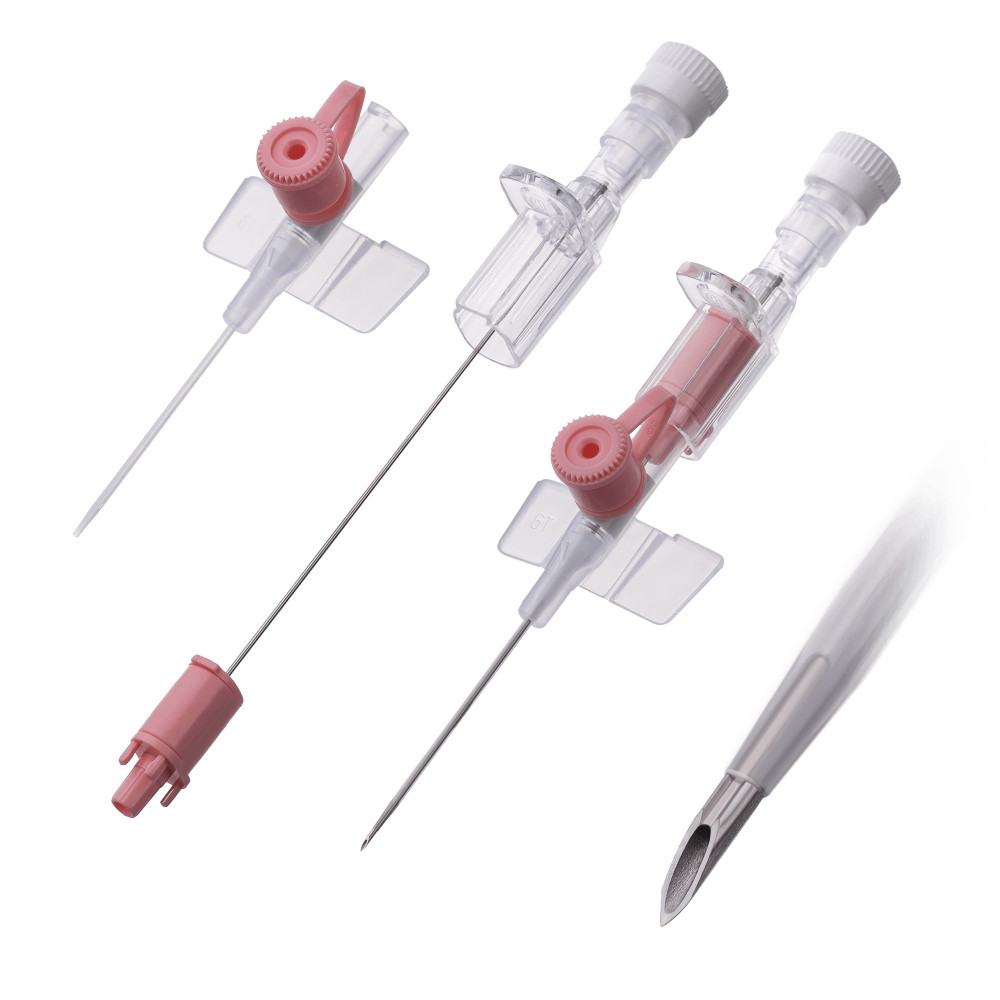

Safety IV Cannula with wings, with injection port
Siliconized needle, siliconised catheter аvailable in FEP or PTFE material, safety guard, injection port, flashback chamber, transparent needle cover.
Product description
- Needle safety guard automatically covers the bevel after withdrawal of needle from the hub, minimizing the risk of needle stick injuries.
- Siliconized, Ultra sharp, Stainless Steel, back-cut needle to perform easy and painless venipuncture.
- Catheter аvailable in FEP or PTFE material. Siliconised with proprietary technology ensuring smooth surface and minimal discomfort for both patient and clinician.
- Through the injection port it is possible to make injections at the same time as on-going fluid therapy.
- Large flashback Chamber allows quick visualization for successful venipuncture.
- Instant confirmation of blood flow along catheter body increases clinician’s ability to successfully access the vein.
- The flexible wings provides easy gripping and follows the contours of site allowing more secure fixation.
- Transparent needle cover to prevent accidental damage to needle and catheter.
- Sterile, single use.
Order information
| Size | Color code | Catheter O.D.mm | Catheter Length mm | Flow Rate (ml/mnt) | Box Qty (inner/outer) |
|---|---|---|---|---|---|
| 14G | Orange | 2.0 | 45 | 270 | 50/500 |
| 16G | Grey | 1.7 | 45 | 200 | 50/500 |
| 17G | White | 1.5 | 45 | 125 | 50/500 |
| 18G | Green | 1.3 | 45 | 90 | 50/500 |
| 20G | Pink | 1.1 | 32 | 60 | 50/500 |
| 22G | Blue | 0.9 | 25 | 36 | 50/500 |
| 24G | Yellow | 0.7 | 19 | 23 | 50/500 |
