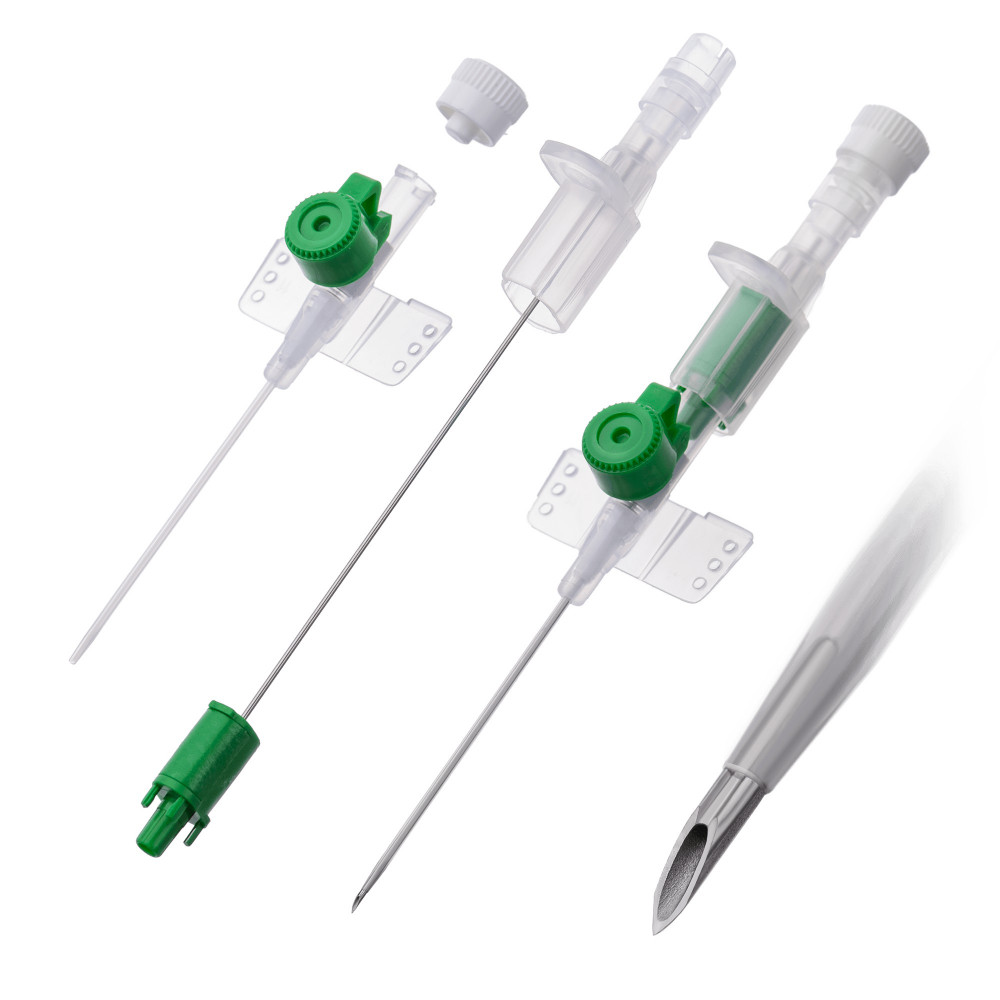

Safety IV Cannula with perforated flexible wings, with injection port with snap fit cap
Siliconized needle, siliconised catheter аvailable in FEP or PTFE material, safety guard, instant confirmation of blood flow, injection port, flashback chamber, transparent needle cover. Snap fit cap for easy one-hand opening and closing
Product description
- Needle safety guard automatically covers the bevel after withdrawal of needle from the hub, minimizing the risk of needle stick injuries.
- Siliconized, Ultra sharp, Stainless Steel, back-cut needle to perform easy and painless venipuncture.
- Catheter аvailable in FEP or PTFE material. Siliconised with proprietary technology ensuring smooth surface and minimal discomfort for both patient and clinician.
- Through the injection port it is possible to make injections at the same time as on-going fluid therapy.
- Large flashback Chamber allows quick visualization for successful venipuncture.
- Instant confirmation of blood flow along catheter body increases clinician’s ability to successfully access the vein.
- The flexible wings provides easy gripping and follows the contours of site allowing more secure fixation.
- Transparent needle cover to prevent accidental damage to needle and catheter.
- Sterile, single use.
Order information
| Size | Color code | Catheter O.D.mm | Catheter Length mm | Flow Rate (ml/mnt) | Box Qty (inner/outer) |
|---|---|---|---|---|---|
| 14G | Orange | 2.0 | 45 | 270 | 50/500 |
| 16G | Grey | 1.7 | 45 | 200 | 50/500 |
| 17G | White | 1.5 | 45 | 125 | 50/500 |
| 18G | Green | 1.3 | 45 | 90 | 50/500 |
| 20G | Pink | 1.1 | 32 | 60 | 50/500 |
| 22G | Blue | 0.9 | 25 | 36 | 50/500 |
| 24G | Yellow | 0.7 | 19 | 23 | 50/500 |
